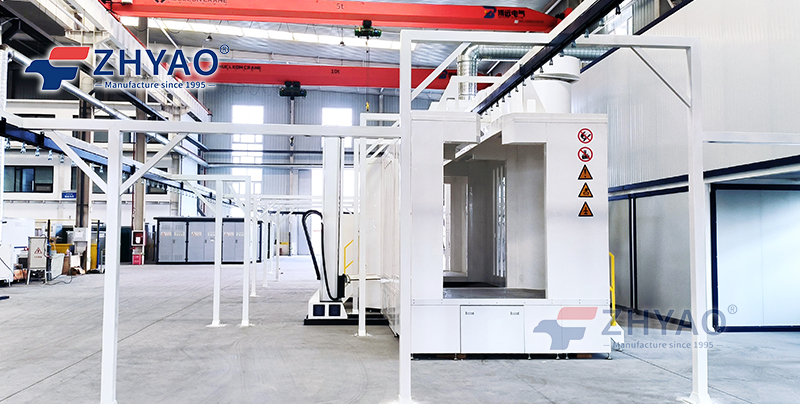

How to Select a Powder Coating Booth for Industrial Production

A powder coating booth is not simply an enclosure for powder spraying. For industrial production, its configuration affects spraying efficiency, powder recovery, color changes, maintenance, and how the booth connects with the rest of the coating line.

When comparing powder coating booths from different suppliers, buyers should look beyond booth dimensions and equipment price. The more important question is whether the booth matches the factory's products, production volume, spraying method, and operating process.

Start With the Production Requirements

Before comparing booth models, define the actual production conditions.

Important information includes:

Maximum and typical workpiece dimensions
Workpiece weight
Product shape
Daily production target
Working hours
Number of coating colors
Color change frequency
Manual or automatic spraying
Available workshop space

A booth designed for small metal components may not be suitable for large steel frames or long aluminum profiles. Likewise, a booth for occasional manual production may have a very different configuration from one integrated into a continuous automatic powder coating line.

The booth should therefore be selected as part of the production process rather than as an independent machine.

Check the Spraying Method

The spraying method directly affects booth configuration.

For manual powder coating, operators need sufficient working space and convenient access around the workpiece. The booth should allow the operator to reach different surfaces without creating unnecessary restrictions.

For automatic spraying, the booth needs to provide enough space for automatic spray guns and reciprocators. Gun movement, workpiece position, and conveyor movement should be considered together.

Robotic spraying requires additional consideration for robot movement, workpiece positioning, and operating clearance.

If a factory handles different products, a combination of automatic and manual spraying may provide more flexibility than using only one spraying method.

Evaluate Powder Recovery and Color Changes

Powder recovery is an important part of booth selection, especially for industrial production.

The appropriate recovery configuration depends on production volume, powder consumption, product mix, and color-change frequency.

For factories that frequently change colors, easy cleaning and reduced powder contamination may be more important than maximizing continuous recovery capacity.

For longer production runs with relatively stable colors, a recovery system designed for continuous operation may be more suitable.

When comparing quotations, buyers should therefore check not only whether powder recovery is included, but also how the recovery system matches the planned production schedule.

Consider Airflow and Powder Containment

A powder coating booth needs controlled airflow to contain overspray and direct powder toward the recovery system.

Poorly matched airflow can affect powder containment, working conditions, and powder recovery. The booth should therefore be evaluated together with its exhaust, filtration, recovery, and air-handling components.

This is especially important when comparing two quotations that appear similar on paper. A booth with a larger physical size does not automatically provide a better spraying environment.

Look at Maintenance and Cleaning

Maintenance requirements can have a direct effect on production downtime.

For factories with frequent color changes, the internal structure should allow operators to clean the booth efficiently. Accessible filters, powder collection areas, inspection points, and service components can make routine maintenance easier.

For long production runs, the recovery and filtration system should be evaluated for continuous operation and maintenance access.

These details may not be obvious from the equipment price, but they can influence the practical operating cost over time.

Check How the Booth Fits the Complete Line

A powder coating booth should not be selected separately from the conveyor and curing system.

The position of the booth affects:

Conveyor routing
Hanger spacing
Spray gun movement
Manual touch-up areas
Powder recovery
Oven connection
Operator access
Maintenance space

For example, increasing production capacity may require changes to conveyor speed, hanger pitch, automatic spray equipment, and recovery capacity at the same time.

This is why a supplier quotation should be evaluated based on the complete production process rather than the booth alone.

Compare Supplier Quotations by Configuration

Two powder coating booth quotations may have very different prices even when the booth dimensions look similar.

When comparing suppliers, check whether the quotation clearly identifies:

Booth dimensions
Spraying method
Recovery system
Filter or cyclone configuration
Automatic spray equipment
Exhaust and airflow components
Electrical control system
Cleaning and maintenance provisions
Installation and commissioning scope

A lower quotation may simply include fewer components or a different system configuration. Comparing the total project scope makes the price difference easier to understand.

Do Not Oversize the Booth

Choosing a larger booth than necessary does not automatically provide better production performance.

An oversized booth may require more factory space and may increase the requirements of the airflow and recovery system.

At the same time, a booth that is too small can restrict spray gun movement, operator access, and future production changes.

The practical objective is to provide enough working clearance for the actual products while keeping the booth integrated with the required spraying and recovery system.

Information to Prepare Before Requesting a Quote

Before asking suppliers for a powder coating booth quotation, prepare:

Workpiece drawings or photos
Maximum and typical dimensions
Maximum weight
Material
Daily production target
Working hours
Number of colors
Color change frequency
Manual, automatic, or robotic spraying
Available workshop dimensions
Existing conveyor or coating equipment

With this information, suppliers can evaluate the booth together with the spraying, recovery, conveyor, and curing requirements.

A useful comparison should focus on whether each proposed configuration can support the intended production process, not simply which supplier offers the lowest booth price.

FAQ

What is the most important factor when selecting a powder coating booth?

The booth should match the workpiece range, production volume, spraying method, powder recovery requirements, and factory layout. Booth size alone is not enough to determine whether a configuration is suitable.

Should powder recovery be considered when buying a powder coating booth?

Yes. Recovery should be evaluated together with powder consumption, production volume, and color-change frequency. Different production patterns may require different recovery configurations.
