The right powder coating booth depends on more than the size of the workpiece. Booth dimensions, spraying method, production volume, powder recovery, color changes, and factory layout all need to work together.

For a new powder coating line or an existing line upgrade, these are the main engineering factors to consider.

1. Start with Workpiece Size

The maximum workpiece dimensions determine the basic booth size, but the actual spraying space also depends on how the workpiece is hung.

Consider:

Maximum length, width, and height
Workpiece weight
Product shape
Hanging orientation
Distance between workpieces

Large or irregular products need enough clearance for spray guns to reach corners and recessed areas. A booth that is too narrow can restrict gun movement and make uniform coating more difficult.

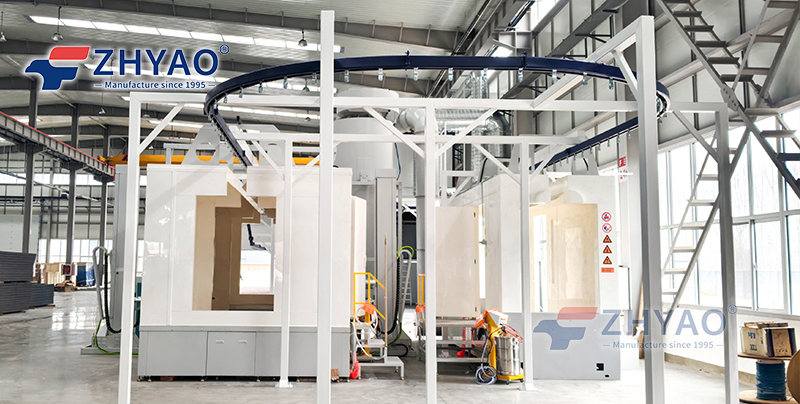

                                                                                     （Shandong Lijian Company CNC Lathe Powder Coating Booth）

2. Match the Booth to the Spraying Method

Manual, automatic, and robotic spraying require different booth configurations.

Manual spraying needs sufficient operator space and easy access around the workpiece.

Automatic spraying with reciprocators requires a defined spraying area and enough clearance for gun movement.

Robotic powder coating requires additional space for robot movement, workpiece positioning, and safety clearance.

For mixed production, a combination of automatic and manual spraying can be practical. Automatic guns can handle repetitive surfaces, while operators finish complex areas or products with frequent changes.

3. Consider Production Capacity

The booth should match the required production rate rather than being selected independently.

Production capacity is related to:

Conveyor speed
Hanger pitch
Workpiece size
Number of spray guns
Number of reciprocators or robots
Available spraying time

A simple relationship is:

Line capacity ≈ Conveyor speed ÷ Hanger pitch

If production increases, simply increasing conveyor speed may reduce coating coverage time. The spraying equipment and booth need to support the required production rate together.

4. Choose the Powder Recovery System

The recovery system is another major factor in booth selection.

Cartridge filter recovery can be suitable for flexible production and applications with frequent color changes.

Cyclone recovery is often considered for higher-volume production and longer production runs, particularly when continuous powder recovery is required.

The choice should be based on powder consumption, production volume, color change frequency, and the overall spraying process.

5. Think About Color Changes

Frequent color changes make booth cleaning time an important production consideration.

If the factory changes colors several times a day, the booth should be designed for easy cleaning and reduced powder contamination.

If the factory runs the same color for long periods, a continuous recovery configuration may be more suitable.

The key question is not simply which recovery system is more efficient, but whether it matches the factory's actual production schedule.

6. Check the Complete Line Layout

The powder coating booth is only one part of the production line.

A typical process may include:

Loading → Pretreatment → Drying → Powder Spraying → Recovery → Curing → Cooling → Unloading

The booth position must work with the conveyor, curing oven, maintenance areas, and operator access.

For automatic or robotic systems, also consider the equipment's movement range rather than only the physical booth dimensions.

7. Avoid Oversizing the Booth

A larger booth is not automatically a better choice.

An oversized booth can increase airflow requirements, powder recovery load, equipment cost, and occupied factory space.

An undersized booth can restrict spraying movement and make maintenance or future expansion difficult.

The practical goal is to provide enough spraying space and airflow while keeping the system matched to the actual workpieces and production requirements.

Before Requesting a Powder Coating Booth Quote

Prepare these basic project details:

Maximum and typical workpiece dimensions
Maximum workpiece weight
Material
Required production output
Working hours
Number of colors
Color change frequency
Manual or automatic spraying
Robot or reciprocator requirements
Available workshop dimensions
Existing conveyor, pretreatment, or curing equipment

With this information, the equipment supplier can evaluate the booth together with the conveyor, spray equipment, recovery system, and curing oven.

Practical Takeaway

The right powder coating booth is determined by the complete production process.

Workpiece size determines the required spraying space.

Production volume affects conveyor speed and spraying capacity.

Spraying method determines booth configuration and equipment clearance.

Color changes influence cleaning and powder recovery requirements.

Factory layout determines how the booth connects with the rest of the coating line.

A good booth design should balance these factors instead of focusing on booth size alone.

ZHYAO can design powder coating booths as part of complete powder coating lines, including automatic or manual spraying systems, cyclone or cartridge recovery, curing ovens, and conveyor systems.
