Can One Automatic Powder Coating Line Handle Different Products? Key Factors to Consider

Many factories do not produce only one type of metal product. A powder coating line may need to handle several models, different sizes, or products with different surface structures.

This raises an important question before purchasing equipment: Can one automatic powder coating line handle different products, or does each product require a separate production setup?

In many cases, one line can handle multiple products. However, this depends on how different the products are and how the line is designed from the beginning.

Product Dimensions Are the First Limitation

Different products do not necessarily require different powder coating lines.

If several products have similar dimensions, they can often be processed on the same automatic line. The conveyor, spray booth, automatic guns, and curing oven can be designed around the required product size range.

The situation becomes more complicated when the size difference is large.

For example, a factory may coat small metal brackets as well as large equipment frames. The spray distance, gun movement, hanger arrangement, booth dimensions, and oven loading conditions may all need to accommodate the larger workpieces.

Therefore, when discussing a multi-product powder coating line with a supplier, it is better to provide the maximum and minimum workpiece dimensions, rather than only describing the typical product.

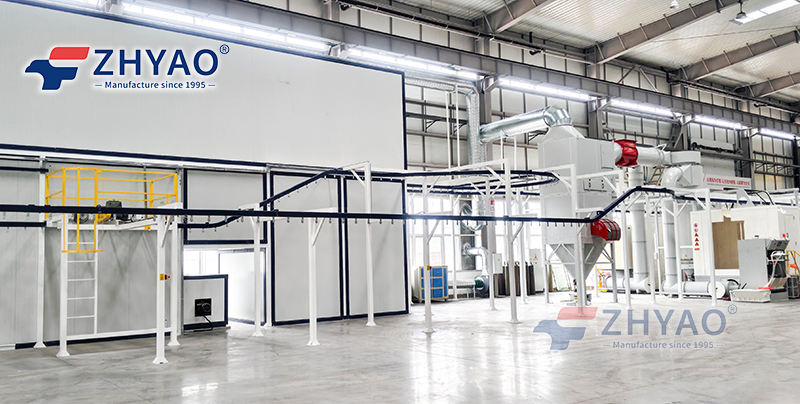

                                                                                      （Lipai Group Machinery Parts Powder Coating Line Project）

Product Shape Can Matter More Than Product Size

Two products with similar dimensions can still require very different spraying arrangements.

A flat panel is relatively straightforward for automatic spraying because its main surfaces are accessible.

A machine frame with brackets, corners, recesses, and internal structures may require different gun positions or spraying angles to achieve adequate coverage.

This means product compatibility should not be judged by dimensions alone.

Before selecting an automatic powder coating system, consider:

• Overall dimensions
• Surface geometry
• Recessed areas
• Internal surfaces
• Edges and corners
• Open and enclosed structures
• Required coating coverage

The more significant the geometry changes between products, the more flexibility the spraying system may need.

Production Volume Affects the Line Configuration

Different products can share one line, but production planning becomes important when their output requirements are very different.

Suppose a factory produces three product types. Product A requires a high daily output, while Products B and C are produced in smaller batches.

The line may still process all three products, but the conveyor speed, workpiece spacing, spraying arrangement, and production scheduling need to accommodate the actual mix.

The question is therefore not simply whether different products can physically pass through the same line.

The more important question is:

Can the line maintain the required production rate while switching between these products?

This distinction is important when evaluating equipment quotations.

Hanger Design Affects Product Compatibility

Hangers are often overlooked when factories evaluate whether one coating line can handle multiple products.

Different workpieces may require different hanging positions or support points. Their orientation on the conveyor affects how the powder reaches the surfaces and how much space each product occupies.

If the hanger design is too specific to one product, changing to another product may create problems with:

• Product stability
• Spray gun distance
• Coating coverage
• Conveyor spacing
• Oven loading
• Production efficiency

For a multi-product line, the hanger system should therefore be considered as part of the overall project rather than as a separate accessory.

In some applications, different hanger configurations can be used for different product families while keeping the main conveyor and coating equipment unchanged.

Automatic Spraying Equipment Must Match the Product Mix

Automatic spray guns, reciprocators, or robots also need to be selected according to the range of products.

For products with relatively consistent shapes, automatic guns mounted on reciprocators can provide repeatable spraying movements.

If products vary considerably in shape or require different spraying paths, a more programmable spraying system may provide greater flexibility.

However, adding more sophisticated automation is not always necessary.

If the differences between products can be handled through reasonable gun positioning, hanger design, or spray parameters, the system may not require a more complex configuration.

The goal is to provide enough flexibility for the actual product range without designing a system around requirements that the factory does not have.

Powder Color Changes Should Be Included in the Planning

Product variety often means color variety as well.

A factory producing several products may also need to use multiple powder colors. Frequent color changes can affect production time, powder recovery, cleaning requirements, and overall operating efficiency.

This is particularly important when the powder coating system includes automatic powder recovery.

If different colors are frequently sprayed through the same booth and recovery system, the factory needs to consider how powder contamination will be controlled and how much time is required for cleaning and color change.

For factories with frequent color changes, the powder booth, recovery system, powder center, and production schedule should be considered together.

The Curing Oven Must Handle the Product Range

A single automatic powder coating line may process different products, but the curing oven still needs to accommodate the entire product range.

The key consideration is not simply the oven's external size.

The oven must provide suitable heating conditions for the workpieces based on the powder manufacturer's curing requirements. Workpiece size, material, thickness, loading density, and heat-up behavior can affect the actual curing process.

A large and heavy workpiece may require different heating conditions from a small thin component.

Therefore, if a factory plans to coat products with significantly different thermal characteristics, these products should be considered during oven design rather than after the line has been installed.

When Is One Line Practical for Multiple Products?

One automatic powder coating line is generally easier to configure for multiple products when:

• Product dimensions fall within a manageable range
• Workpiece shapes are reasonably compatible
• Products can use compatible hanger arrangements
• Production volumes can be balanced through scheduling
• Automatic spraying can cover the required surfaces
• Powder colors and changeover requirements are manageable
• The curing system can accommodate the product range

The greater the difference between products, the more carefully the line needs to be engineered.

When Might One Line Become Difficult to Manage?

A single line may become difficult to operate efficiently when the products have very different dimensions, weights, geometries, coating requirements, or production volumes.

For example, combining very small components with extremely large structures may create conflicts in conveyor spacing, spraying distance, oven loading, and production rhythm.

In such cases, the solution is not automatically to purchase two complete powder coating lines.

Other options may include separate product scheduling, different hanger systems, manual touch-up for selected areas, additional automatic guns, or a combination of automatic and manual spraying.

The appropriate approach depends on the actual production requirements and expected future product mix.

What Information Should You Give a Supplier?

If you want one automatic powder coating line to handle different products, provide the supplier with actual information for each major product group.

A useful project specification should include:

1. Product name or type
2. Maximum and minimum dimensions
3. Maximum weight
4. Material
5. Product shape and structure
6. Required coating surfaces
7. Expected production volume
8. Powder colors and expected color changes
9. Required coating quality
10. Expected future products

Photos or drawings of representative workpieces can also help the supplier understand the differences between products.

This information allows the line design to be evaluated as a complete production system instead of judging compatibility from one sample workpiece.

Design the Line Around the Product Range

A multi-product automatic powder coating line is possible, but its flexibility needs to be designed into the system.

The key factors are not simply the number of products. Dimensions, geometry, weight, hanger arrangement, production rhythm, coating coverage, powder colors, and curing requirements all influence whether different products can share the same line efficiently.

For factories with a changing product mix, the best starting point is to list the current products and expected future products before choosing the equipment configuration.

A line designed around the actual product range can provide more useful flexibility than a system selected only according to a standard equipment specification.

FAQ

Can one automatic powder coating line coat products of different sizes?

Yes, provided the line is designed for the required size range. The maximum workpiece dimensions affect the conveyor, hanger system, spray booth, automatic gun arrangement, and curing oven. If the size difference is large, the supplier should evaluate the largest and smallest products together before finalizing the equipment configuration.

Do different products require different automatic spray programs?

They may. Products with different shapes or coating areas can require different spray gun positions, movement parameters, or spraying sequences. A line can be designed with different settings or programs for different product groups, depending on the automatic spraying equipment used.
