Semi-Automatic Powder Coating Line Equipment

Efficient, Flexible and Cost-Optimized Powder Coating Solution

 Product Overview

The Semi-Automatic Powder Coating Line Equipment is designed for manufacturers who require stable coating quality while maintaining operational flexibility. It combines manual spraying processes with automated conveying, curing, and powder recovery systems.

This configuration is widely used in small to medium production environments where full automation is not required or not cost-efficient.

The system ensures consistent coating quality, reduced labor dependence, and scalable production capability.

 Typical Production Challenges This System Solves

In many coating workshops, production efficiency and quality consistency are often limited by manual processes.

This system effectively solves:

Inconsistent coating thickness caused by manual spraying

High labor dependency and operator variation

Excess powder waste during coating process

Slow color change affecting production efficiency

Limited production scalability in traditional manual lines

By introducing partial automation, the system stabilizes production quality while keeping operational flexibility.

System Structure & Working Principle

The semi-automatic powder coating line integrates multiple functional sections into a continuous workflow:

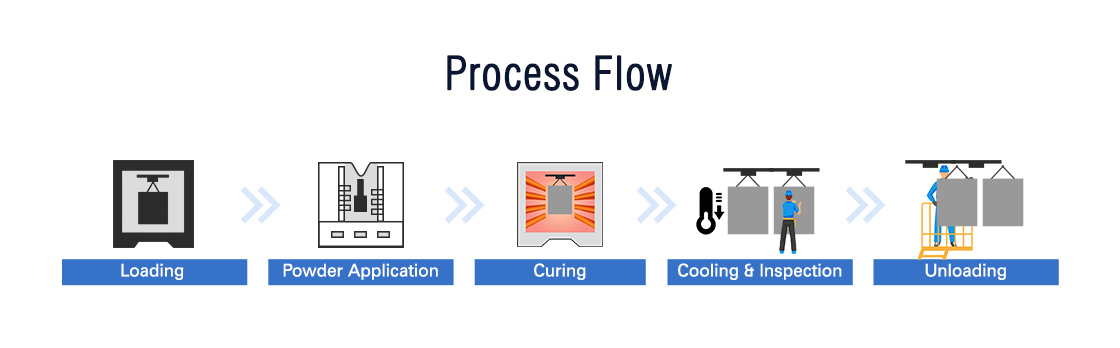

Process Flow:

Loading → Pretreatment → Drying → Semi-Automatic Powder Spraying → Powder Recovery → Curing → Cooling → Unloading

Key System Modules:

Pretreatment section (chemical or mechanical cleaning)

Drying oven (moisture removal before coating)

Powder spraying booth (manual + reciprocator assisted)

Powder recovery system (cyclone + cartridge filtration)

Curing oven (controlled heating 180–220°C)

Conveyor system (optional overhead or roller type)

The system can be configured based on production capacity and factory layout.

Technical Parameters

Line type: semi-automatic powder coating line

Curing temperature: 160–220°C adjustable

Temperature control accuracy: ±3°C

Powder recovery efficiency: up to 95%

Color change time: ≤15 minutes

Conveyor speed: adjustable (based on output requirement)

Heating method: electric / gas / diesel optional

Control system: PLC intelligent control

Key Features

Balanced automation and manual flexibility

Stable coating thickness control (low deviation)

High powder utilization efficiency

Fast color change system for batch production

Modular design for future full automation upgrade

Energy-efficient curing oven system

Compatible with complex and multi-shape workpieces

Engineering Advantages

This system is designed to optimize production cost while maintaining industrial coating quality.

Key engineering advantages include:

Reduced operator inconsistency through reciprocator assistance

Stable airflow design inside spraying booth

Optimized powder recovery reducing material loss

Modular oven structure for energy efficiency

Scalable architecture for future automation upgrade

It is especially suitable for factories transitioning from manual to automated production.

Core System Components

Pretreatment Section

Removes oil, rust, and surface contaminants to ensure coating adhesion.

Powder Spraying Booth

Anti-static controlled environment with manual spray guns and optional automatic reciprocators for uniform coating.

Powder Recovery System

Cyclone separation combined with cartridge filtration ensures high powder reuse efficiency.

Curing Oven

Controlled heating tunnel or batch oven system ensuring proper powder melting and curing.

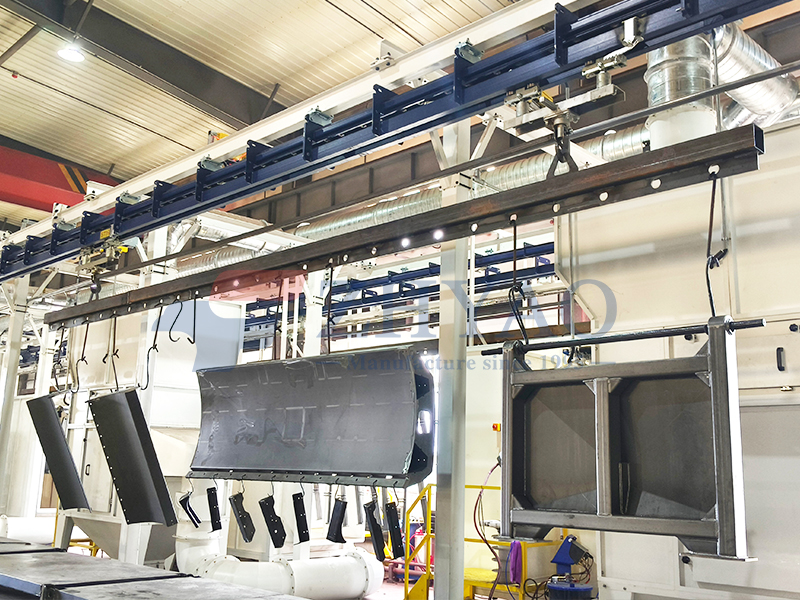

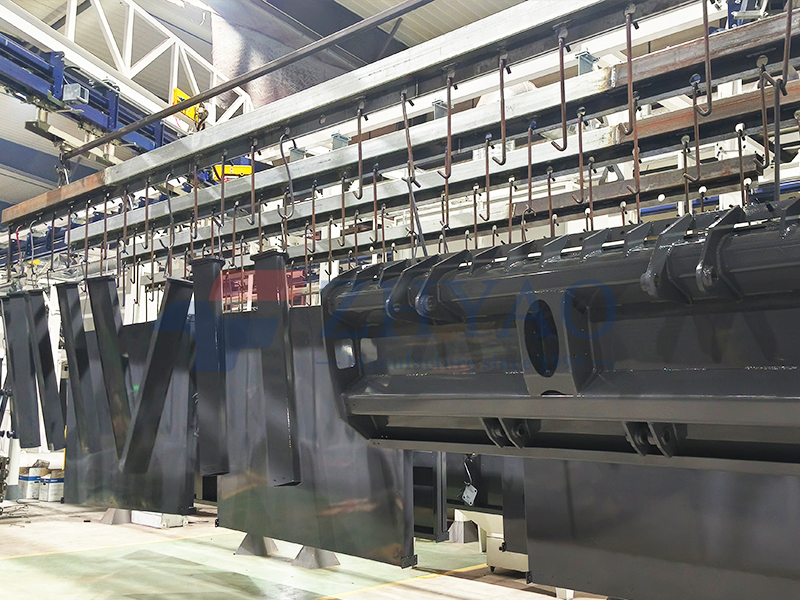

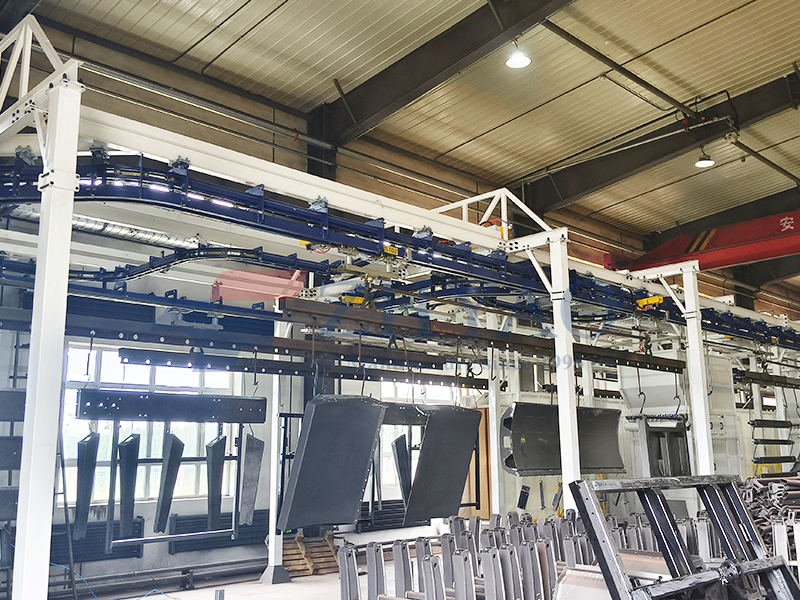

Conveyor System (Optional)

Overhead or roller conveyor designed based on production flow requirements.

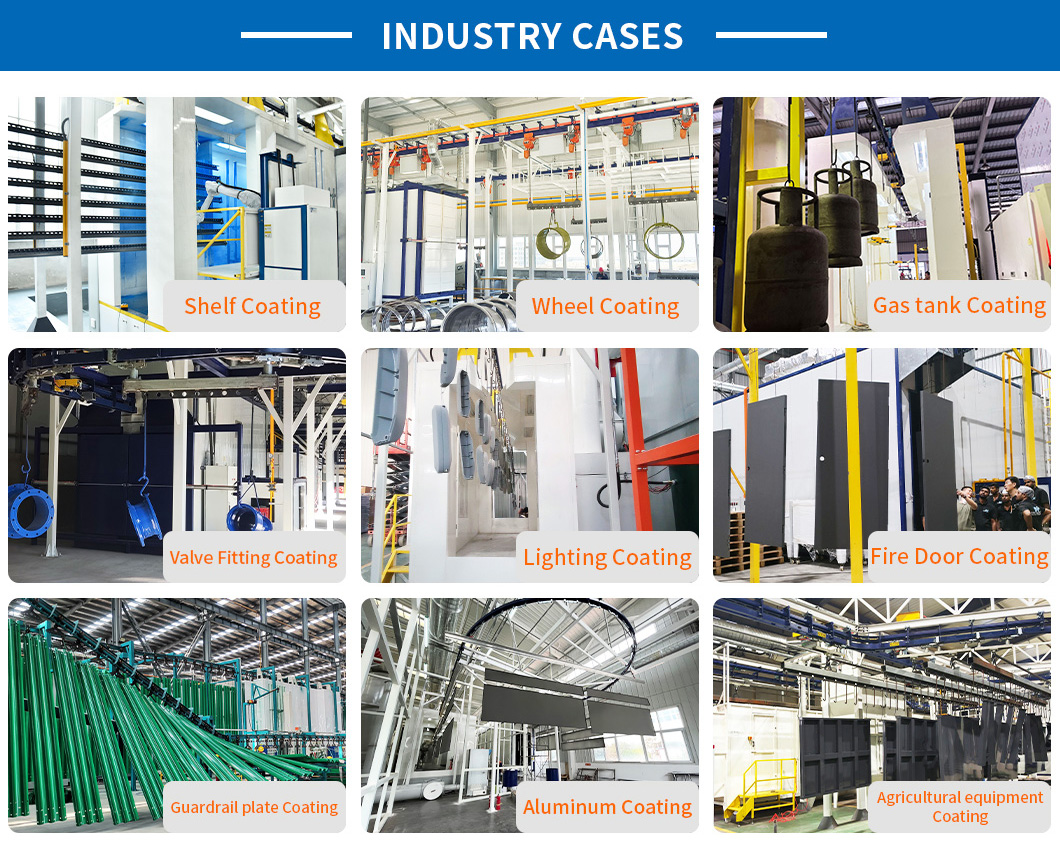

Typical Applications

Automotive parts manufacturing

Metal furniture production

Electrical cabinet industry

Industrial machinery components

Hardware and tool manufacturing

Small batch customized production

 Why This System

Suitable for factories with variable batch sizes

Lower investment compared to full automatic lines

Easy operation and maintenance

Stable coating quality improvement over manual spraying

Upgrade path to full automation available

FAQ

Q1: What is a semi-automatic powder coating line?

It is a system combining manual spraying with automated conveying and curing processes.

Q2: Can it be upgraded later?

Yes, it can be expanded into a fully automatic powder coating line.

Q3: Is it suitable for small factories?

Yes, it is specifically designed for small to medium production environments.

Conclusion

The Semi-Automatic Powder Coating Line Equipment provides a balanced solution between manual flexibility and industrial automation. It improves coating consistency, reduces material waste, and increases production efficiency while keeping investment cost under control.

It is an ideal transition solution for manufacturers upgrading their coating capabilities.

If you provide your product type, daily output, and workshop layout, we can design a customized semi-automatic powder coating line solution including layout drawing, system configuration, and capacity planning.
