Integrated powder coating systems designed to connect surface preparation, powder application, curing and material handling into a controlled production process.

Powder coating paint line systems are used to organize multiple coating operations into a continuous workflow for metal products. Depending on the workpiece and production requirements, the system can include pretreatment, drying, powder spraying, powder recovery, curing, conveying and electrical control.

ZHYAO designs and manufactures customized powder coating paint line systems according to workpiece dimensions, weight, production capacity, coating requirements, color-change frequency and factory layout. Equipment selection and process configuration are developed according to the actual application rather than a fixed standard system.

1. Powder Coating System Features

A properly configured powder coating paint line system allows different production stages to operate as a coordinated process instead of relying on separate manual operations.

Key features include:

Continuous handling of workpieces through the coating process

Consistent powder application for repeated production

Controlled curing conditions for stable coating performance

Powder recovery to collect overspray during spraying

Flexible equipment configuration for different workpiece types

Production layouts designed around available workshop space

The final system configuration depends on the workpiece, required output, coating specification and production process.

2. Applicable Industries

Powder coating paint line systems are widely used for metal products in building materials, hardware, machinery, automotive, electrical equipment, furniture, appliances and outdoor products.

Typical applications include doors, profiles, cabinets, frames, brackets, guardrails, equipment components and other fabricated metal products.

3. Main System Sections

The system can be configured with different production sections according to the coating process.

Pretreatment System

Prepares the workpiece surface by removing contaminants and improving the surface condition before powder application. Spray pretreatment, immersion pretreatment or shot blasting can be selected according to the application.

Drying Oven

Removes residual moisture from workpieces after wet pretreatment before they enter the powder spraying section.

Powder Application System

Applies powder coating to the workpiece using electrostatic spraying. Automatic spray guns, reciprocators or manual spraying stations can be selected according to workpiece geometry and production requirements.

Powder Booth & Recovery

Contains overspray during powder application and collects excess powder. Recovery configuration is determined by powder usage, production volume and color-change requirements.

Curing Oven

Provides controlled heating and hot-air circulation to cure the powder coating and develop the required coating film.

Conveyor System

Transfers workpieces between the different process sections. Conveyor type, speed, load capacity and hanging arrangement are designed according to the workpieces and required production rhythm.

Electrical Control System

Coordinates the main equipment and production sequence, including conveying, spraying, pretreatment and curing operations.

4. Powder Coating Process

The complete process is configured according to the workpiece and coating requirements.

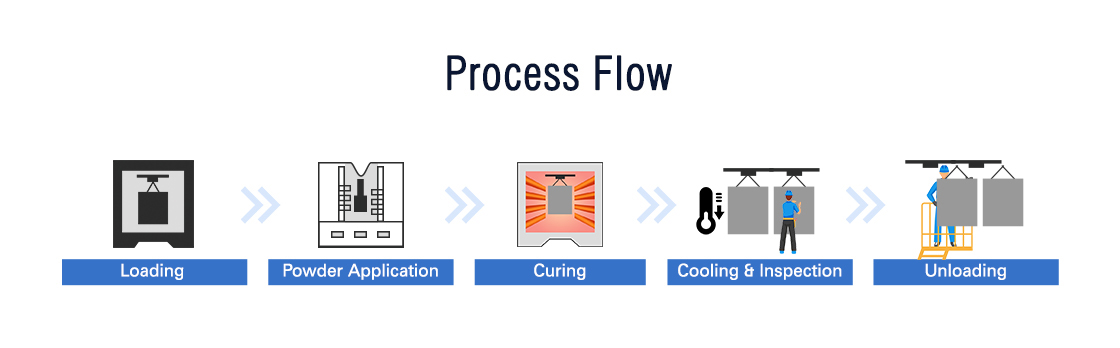

Loading → Pretreatment → Drying → Electrostatic Powder Spraying → Powder Recovery → Curing → Cooling → Unloading

The process sequence can be adjusted when different surface preparation methods, spraying arrangements or production requirements are involved.

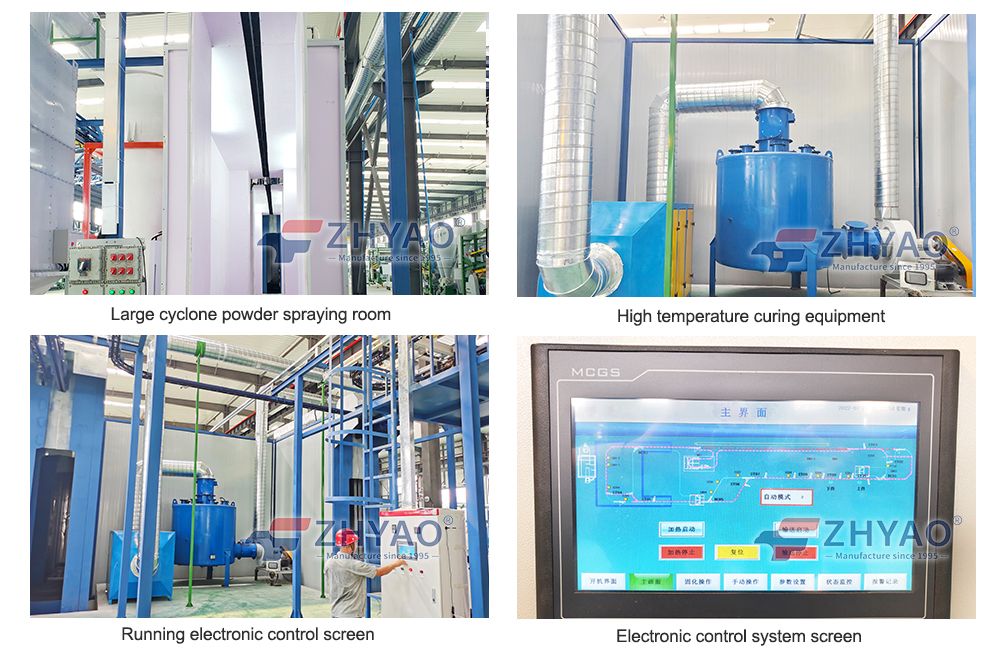

5. Project Cases

Powder coating paint line systems are configured differently according to the product, production capacity and factory conditions.

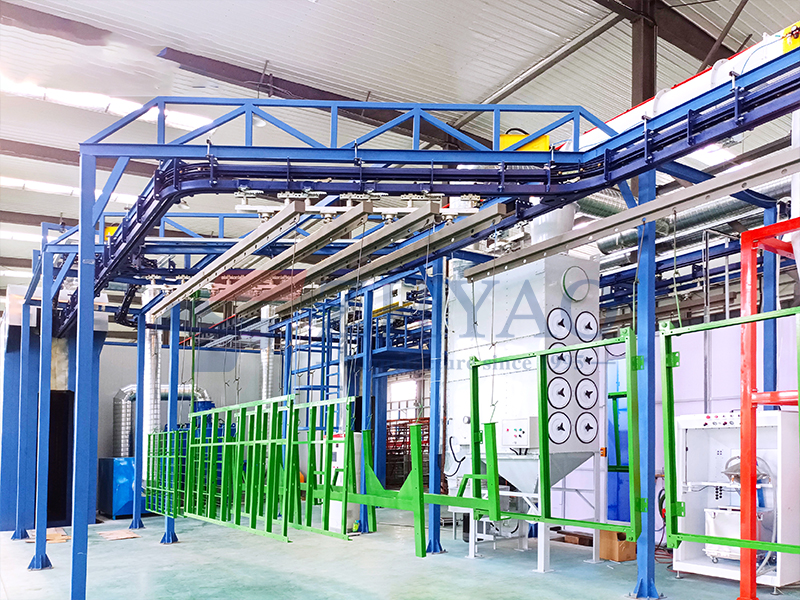

Workpiece: Agricultural machinery equipment

Industry: Machinery Manufacturing

Coating Process: Pretreatment → Drying → Powder Spraying → Curing

Project Scope: Customized powder coating paint line system

Location: Hebei Julite Machinery Manufacturing Co., Ltd., China

ZHYAO determines the equipment arrangement and process configuration according to the workpiece characteristics, production requirements and available workshop space.

6. ZHYAO Customized Solution

To develop a suitable powder coating paint line system, please provide the following information:

Factory Dimensions (Length, Width, Height)

Production Output (1 day = 8 hours, 1 month = 30 days)

Material of the Workpieces

Workpiece Dimensions

Workpiece Weight

Color Change Demand (Frequency)

Based on this information, ZHYAO engineers evaluate the coating process, equipment configuration and line layout, then develop a customized solution according to your production requirements and factory conditions.

7. Why Choose ZHYAO

30+ Years of Industry Experience

ZHYAO has focused on coating equipment design and manufacturing since 1995, with experience in powder coating and industrial coating applications.

Complete Process Planning

The powder coating system is planned as a connected production process covering surface preparation, powder application, curing and material handling.

Customized Equipment Configuration

Pretreatment, spray equipment, powder recovery, curing ovens and conveyors can be selected according to the project requirements.

Engineering & Manufacturing Support

ZHYAO provides support from process design and equipment manufacturing to installation and commissioning.

8. Project Support & Delivery

Production Lead Time

45–90 Days

The actual schedule depends on the system configuration, equipment quantity, customization requirements and project confirmation process.

Professional Installation

ZHYAO provides installation and commissioning support according to the project scope and site conditions.

24-Month Warranty

The equipment is covered by a 24-month warranty according to the agreed project warranty terms.

Lifetime Technical Service

After the warranty period, ZHYAO continues to provide technical support and service for the coating system.

FAQ

What is included in a powder coating paint line system?

Depending on the project, the system can include pretreatment, drying, powder spraying, powder recovery, curing, conveying and electrical control equipment.

Can the system be designed for different workpiece sizes?

Yes. Conveyor capacity, hanging arrangements, spray equipment, booth dimensions and curing equipment can be configured according to the workpiece dimensions, weight and production requirements.

How is the powder spraying system selected?

The spraying configuration depends on workpiece geometry, coating area, production speed, powder characteristics and required coating coverage. Automatic spray guns, reciprocators and manual stations can be combined when required.

Can the system handle multiple powder colors?

Yes. The powder supply, booth and recovery configuration can be designed according to the required color-change frequency. Frequent color changes require appropriate cleaning and recovery considerations during system planning.

【Get a Custom Solution】
