An accumulation and release powder coating line helps keep the coating process running smoothly by buffering workpieces between production stages with different operating speeds.

ZHYAO designs customized systems according to workpiece characteristics, production capacity, conveyor layout and factory conditions, with the accumulation capacity and release sequence configured to match the actual production process.

1. Accumulation and Release Powder Coating Line Advantages

An accumulation and release system creates a controlled buffer between coating processes, helping maintain a stable production flow when different stages operate at different speeds.

Key advantages include:

Production Buffering – Temporarily holds workpieces between processes.

Stable Material Flow – Reduces interruptions caused by differences in process speed or cycle time.

Flexible Conveyor Control – Releases workpieces according to the production sequence.

Better Process Coordination – Helps synchronize pretreatment, spraying, curing and other stages.

Flexible Line Layout – Accumulation sections can be arranged according to production needs and factory space.

The buffer capacity and conveyor configuration are designed according to the workpiece, production output and process requirements.

2. Applicable Industries

Accumulation and release powder coating lines are widely used for metal products in building materials, hardware, machinery, automotive, electrical equipment, appliances, furniture and other manufacturing industries.

Typical applications include doors, profiles, frames, cabinets, brackets, machine components, guardrails and fabricated metal products.

3. Main Components

Accumulation Conveyor Section

Provides temporary storage for workpieces between production stages. Its capacity is determined by the required buffer time, workpiece dimensions and production rhythm.

Release Conveyor System

Controls the movement of accumulated workpieces and releases them into the next process according to the required production sequence.

Pretreatment System

Prepares the workpiece surface before powder coating. Spray pretreatment, immersion pretreatment or other surface preparation methods can be selected according to the product.

Drying Oven

Removes residual moisture after wet pretreatment before the workpieces enter the powder spraying process.

Powder Coating Booth

Provides a controlled area for powder application. Automatic spray guns, reciprocators and other spraying equipment can be configured according to the workpiece and production requirements.

Powder Recovery System

Collects overspray powder generated during spraying. The recovery configuration can be selected according to powder type, production volume and color-change requirements.

Curing Oven

Provides controlled heating and hot-air circulation to cure the powder coating and develop the required coating film.

Conveyor & Control System

Coordinates workpiece movement, accumulation and release together with the main coating processes. Conveyor speed, load capacity and control logic are configured according to the production flow.

4. How the Accumulation and Release System Works

The accumulation section creates a temporary buffer between connected production stages.

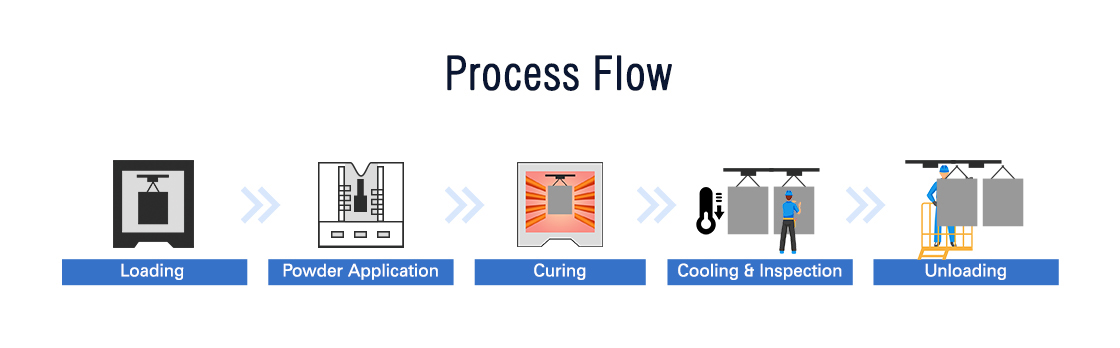

Loading → Pretreatment → Drying → Accumulation → Powder Spraying → Curing → Cooling → Release & Unloading

The actual accumulation and release points can be arranged according to the production cycle, conveyor routing and factory layout.

5. Project Cases

The configuration of an accumulation and release powder coating line depends on the workpiece, production rhythm and available workshop space.

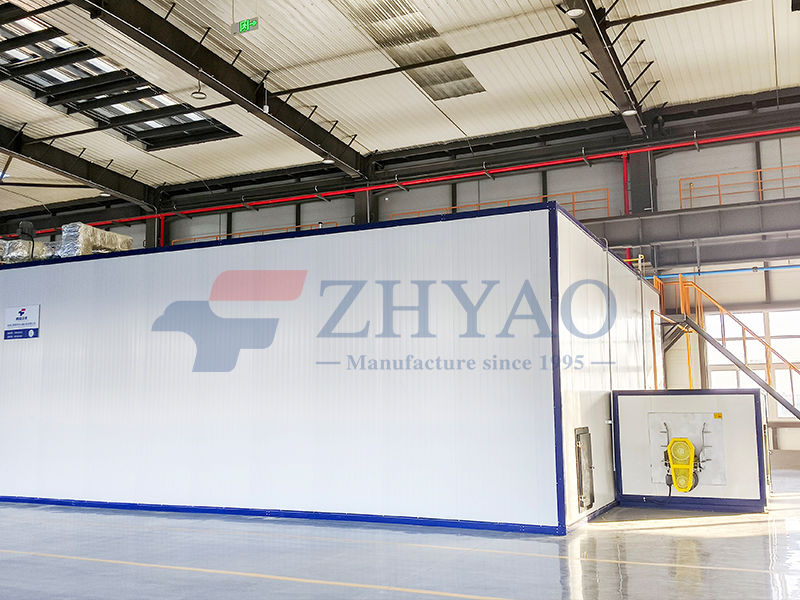

Workpiece: Steel components for garages

Industry: Machinery Manufacturing

Coating Process: Pretreatment → Drying → Powder Spraying → Curing

Project Scope: Customized accumulation and release powder coating line

Location: China Taiyuan Xiangming Group – Powder Coating Line Project for Multi-level Parking Garage Steel Components

ZHYAO configures the buffering capacity, conveyor routing and release sequence according to the customer's production requirements.

6. ZHYAO Customized Solution

To develop a suitable accumulation and release powder coating line, please provide the following information:

Factory Dimensions (Length, Width, Height)

Production Output (1 day = 8 hours, 1 month = 30 days)

Material of the Workpieces

Workpiece Dimensions

Workpiece Weight

Color Change Demand (Frequency)

Based on this information, ZHYAO engineers evaluate the coating process, equipment configuration and line layout, then develop a customized solution according to your production requirements and factory conditions.

7. Why Choose ZHYAO

30+ Years of Industry Experience

ZHYAO has focused on coating equipment design and manufacturing since 1995, with experience in powder coating and industrial coating systems.

Process & Conveyor Planning

Accumulation capacity, conveyor routing and release sequence are designed according to the actual production flow.

Customized Line Configuration

Pretreatment, spraying, recovery, curing and conveying systems can be configured according to workpiece and production requirements.

Engineering & Manufacturing Support

ZHYAO provides support covering process planning, equipment manufacturing, installation and commissioning.

8. Project Support & Delivery

Production Lead Time

45–90 Days

The actual production schedule depends on the line configuration, equipment quantity, customization requirements and project confirmation process.

Professional Installation

ZHYAO provides installation and commissioning support according to the project scope and site conditions.

24-Month Warranty

The equipment is covered by a 24-month warranty according to the agreed project warranty terms.

Lifetime Technical Service

Technical support and service remain available after the warranty period.

FAQ

What is an accumulation and release powder coating line?

It is a powder coating line equipped with controlled conveyor buffering that temporarily holds workpieces and releases them into the next production stage according to the required process sequence.

Why is accumulation needed in a powder coating line?

Accumulation can help buffer differences in processing time between production stages. It allows workpieces to wait temporarily without requiring every section of the line to operate at exactly the same speed.

Where can an accumulation section be installed?

The location depends on the production process. It may be arranged between pretreatment and spraying, before curing or at another suitable point where buffering is required.

Can the accumulation system handle different workpiece sizes?

Yes. The conveyor structure, hanging method and accumulation capacity can be designed according to the dimensions and weight range of the workpieces.

How is the accumulation capacity determined?

It depends on factors such as workpiece size, conveyor speed, process cycle time, required buffer duration and production output.
