How to Expand an Existing Powder Coating Line

When production demand increases, many factories face the same question: should they build a new powder coating line, or can the existing line be expanded?

In many cases, an existing powder coating line can be upgraded without replacing every piece of equipment. The right approach depends on the current line configuration, production capacity, workpiece characteristics, and the specific section that is limiting output.

Find the Bottleneck Before Adding Equipment

The first step is to determine what is actually restricting production.

A factory may have sufficient spraying capacity but an oven that limits conveyor speed. Another may have a suitable curing oven but insufficient spray capacity. Pretreatment, drying, conveyor loading, powder recovery, and color changes can also become bottlenecks as production increases.

Before making changes, record the current conveyor speed, daily output, working hours, curing time, workpiece dimensions, average weight, and color-change frequency. These figures provide a practical basis for deciding where an upgrade is needed.

Check the Existing Conveyor Capacity

The conveyor should be one of the first components evaluated during a powder coating line expansion.

Increasing conveyor speed can increase production, but only when the pretreatment, spraying, and curing processes can keep up. If curing time becomes too short, higher conveyor speed may cause coating quality problems.

Another option is to increase the number of hanging positions by adjusting hanger spacing or hanger design. This can increase output without necessarily increasing line speed, provided the conveyor structure and downstream equipment can handle the additional load.

Evaluate the Pretreatment System

Higher production also means more workpieces passing through pretreatment every hour.

For a spray pretreatment system, the factory should check tank capacity, pump performance, spray pressure, nozzle condition, heating capacity, chemical circulation, and treatment time.

For an immersion pretreatment system, tank volume, treatment time, lifting or conveying capacity, chemical concentration, and heating requirements become important.

The existing pretreatment equipment does not always need to be replaced. Depending on the situation, upgrading pumps, heating equipment, nozzles, or selected process sections may provide sufficient additional capacity.

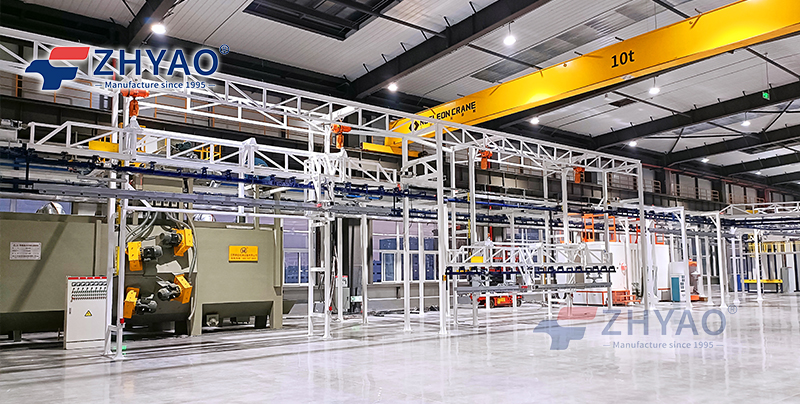

                                                        （Three-dimensional steel structure project in Taiyuan City, Shanxi Province, China）

Upgrade the Powder Spray Booth When Necessary

The powder coating booth can become a production limitation when the factory increases output or introduces larger workpieces.

Simply installing additional automatic spray guns may not solve the problem if the booth dimensions, reciprocator movement, powder supply, or recovery system cannot support the higher spraying demand.

The arrangement of automatic guns and reciprocators should match the workpiece geometry. Manual spray stations may also need to be adjusted when operators are responsible for recessed areas, corners, or other difficult-to-reach surfaces.

For production involving frequent color changes, powder recovery and booth cleaning time should also be considered. A recovery system that matches the production requirements can help reduce unnecessary downtime.

Check the Curing Oven Before Increasing Line Speed

The curing oven is another critical point when expanding an existing powder coating line.

A higher conveyor speed reduces the time available for the workpiece to reach the required curing condition. Therefore, the oven length, heating capacity, airflow, temperature distribution, and actual workpiece temperature should be reviewed before changing the line speed.

If the existing oven has limited capacity, possible solutions may include extending the oven, improving its heating system, modifying airflow, or adjusting the conveyor arrangement.

The correct solution depends on the powder specification, workpiece material, workpiece thickness, required curing condition, and current oven design.

Consider Adding or Modifying a Spray Section

Some factories do not need a complete line reconstruction. Their main requirement may simply be additional spraying capacity.

In this situation, an additional spray zone, automatic spray guns, reciprocators, or manual spraying positions may be integrated into the existing system if sufficient space and conveyor capacity are available.

This approach can be useful when production has changed since the original line was installed. For example, a factory may have started with relatively simple workpieces and later added larger or more complex products that require longer spraying times.

Review Factory Space and Utilities

Physical space is only one part of an expansion project.

The factory should also check electrical capacity, compressed air supply, heating or gas capacity, exhaust and ventilation, water supply, drainage, and wastewater treatment where applicable.

Additional automatic spray equipment increases compressed-air demand. Expanding a curing oven can increase heating requirements. A larger pretreatment system may require additional water circulation and treatment capacity.

Checking these utilities before equipment installation helps avoid unexpected modifications during the project.

Decide Which Existing Equipment Can Be Reused

One of the main advantages of expanding an existing powder coating line is that suitable equipment may be retained.

Depending on its condition and design, the existing conveyor, loading and unloading areas, pretreatment system, drying oven, powder booth, curing oven, or control system may remain in operation.

However, reuse should be based on technical compatibility rather than simply whether the equipment is still running.

The key questions are whether the equipment has enough capacity, whether its structure can support the upgrade, whether the control system can communicate with new equipment, and whether the existing process flow remains suitable.

Plan for the Next Stage of Production

An expansion should not only solve today's capacity problem.

If production is expected to continue growing, the upgraded layout should leave reasonable room for future adjustments. Electrical cabinets, conveyor routing, control systems, spray equipment, and factory space can be considered with future modifications in mind.

This does not mean choosing oversized equipment for every section. Instead, the system should avoid creating unnecessary limitations that make a second expansion difficult.

When Is a New Powder Coating Line a Better Choice?

Not every existing line is suitable for expansion.

If the current equipment has serious structural problems, outdated controls, insufficient oven capacity, poor process flow, or significant deterioration, modifying several sections may become complicated.

A new powder coating line may also make more sense when the required output is substantially higher than the original design capacity or when the factory has completely changed its product range.

The decision should therefore be based on a comparison between the cost and expected performance of upgrading the current line and installing a new system.

A Practical Expansion Process

A powder coating line expansion can be approached step by step.

First, collect the production data from the existing line. Then identify the bottleneck and establish the target output.

Next, evaluate the conveyor, pretreatment, drying section, powder spray booth, recovery system, curing oven, electrical system, compressed air, and heating capacity.

After that, determine which equipment can be retained and which sections require modification or replacement.

The final design should integrate the new equipment with the existing production flow rather than treating each upgrade as an independent project. After installation, conveyor speed, pretreatment conditions, spraying performance, oven temperature, and finished coating quality should be checked during commissioning.

What Information Is Needed for an Expansion Project?

A detailed evaluation normally requires information about both the existing line and the planned production.

Useful information includes factory layout, current equipment configuration, workpiece material, minimum and maximum dimensions, average workpiece weight, current daily output, target daily output, working hours, powder type, number of colors, color-change frequency, conveyor speed, pretreatment process, and curing oven dimensions.

Photos or videos of the existing equipment can also help engineers understand the current layout and identify possible integration points.

Conclusion

Expanding an existing powder coating line is not simply a matter of adding more spray guns or increasing conveyor speed. The entire production process needs to be considered as one system.

For many factories, the practical solution is to keep suitable existing equipment and upgrade the sections that are limiting production. This can include the conveyor, pretreatment system, spray booth, powder recovery system, curing oven, or control system.

A careful assessment before modification can help determine whether the existing powder coating line has enough potential for expansion and where investment will have the greatest effect.

FAQ

Can an existing powder coating line be expanded without replacing the whole line?

Yes. If the existing equipment is in suitable condition and has compatible capacity, selected sections can be upgraded while other equipment continues to operate. The actual solution depends on the existing line configuration and target production capacity.

What should be checked first when expanding a powder coating line?

The current production bottleneck should be identified first. Conveyor capacity, pretreatment capacity, spraying performance, curing oven capacity, utilities, and the target production increase should then be evaluated together.
