Spray Painting Line Cost: What Affects the Total Investment?

There Is No Standard Price for a Spray Painting Line

The cost of a spray painting line can vary significantly between projects. A line for small metal components may require a relatively simple configuration, while large steel structures or complex industrial products can require larger booths, longer drying areas, stronger conveying equipment, and additional process stages.

The final investment should therefore be evaluated according to the complete production process rather than a single equipment price.

Workpiece Size and Weight

The dimensions of the workpieces have a direct effect on equipment scale.

Large or heavy products may require a larger spray painting booth, stronger conveyor carriers, greater ventilation capacity, and more space inside drying or curing equipment. Product shape also affects how spray guns or operators can access the surfaces.

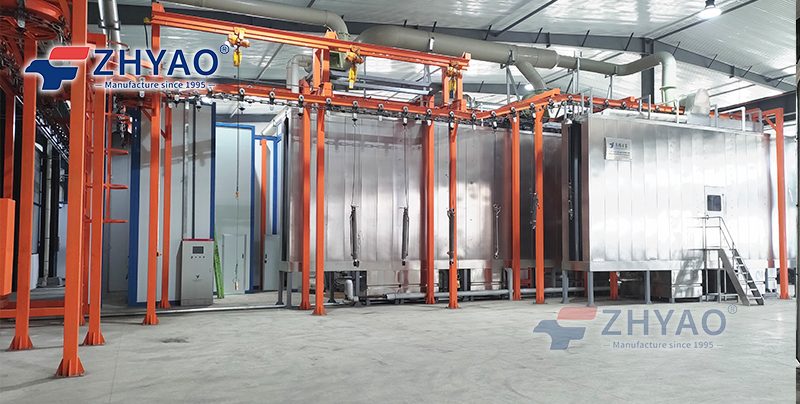

（ZHYAO Yantai Shanhe Hydraulic Machine Painting Line Project）

Production Capacity

A factory producing 100 parts per day will have different equipment requirements from one processing several thousand pieces.

Production targets influence conveyor speed, booth dimensions, number of spray guns, drying capacity, curing capacity, and loading arrangements. The line should be sized around the required output rather than using maximum capacity as the design target.

Surface Preparation

Surface preparation can become an important part of the total investment.

Depending on the substrate and coating process, a project may use shot blasting, spray pretreatment, or immersion pretreatment. Each option involves different equipment, utilities, floor space, and operating requirements.

For steel structures with rust or scale, shot blasting may be required before painting. Chemical pretreatment may be more appropriate for other metal products.

Paint Application Method

The painting section can range from manual spray guns to automatic spray systems, reciprocators, or robotic painting equipment.

Manual spraying generally requires less automation equipment, while automated systems add mechanical movement, controls, sensors, and paint supply components. The appropriate choice depends on production volume, product consistency, and labor requirements.

Drying and Curing Requirements

Depending on the coating system, the line may require drying, flash-off, or curing equipment. Oven dimensions and heating requirements depend on the workpiece size, coating material, production speed, and required process time.

The heating source, insulation, airflow, and temperature control also affect both the initial investment and future operating costs.

Ventilation and Filtration

Spray painting produces paint mist and requires appropriate exhaust and filtration arrangements.

The required ventilation capacity depends on booth dimensions, spray method, paint type, and production conditions. Filtration equipment, exhaust fans, ducts, and related environmental systems can therefore contribute significantly to the project scope.

Conveyor and Material Handling

A conveyorized painting line requires equipment capable of safely moving the workpieces through each process stage.

Load capacity, conveyor length, speed, carrier design, and layout all influence the investment. For factories with irregular production flow, additional material-handling or accumulation sections may also be considered.

Factory Conditions

The existing workshop can have a major effect on the final project cost.

Building height, available floor space, columns, doors, drainage, power supply, compressed air, ventilation routes, and heating utilities may require specific engineering or factory modifications.

A new workshop with sufficient space may provide more layout flexibility than an existing building with fixed structural limitations.

Installation and Engineering Scope

Two quotations may have different prices because they include different services.

Before comparing offers, clarify whether the price covers engineering design, equipment installation, commissioning, operator training, technical documentation, and after-sales support. Customer responsibilities should also be clearly defined.

Operating Costs Should Be Included

The initial equipment investment is only part of the total cost of ownership. Paint consumption, energy, compressed air, filters, maintenance, replacement parts, and wastewater treatment where applicable can affect long-term expenses.

A practical investment assessment should consider both the purchase price and expected operating conditions.

Conclusion

The total investment in a spray painting line is influenced by workpiece size, production capacity, surface preparation, painting method, drying and curing requirements, ventilation, conveyor design, factory conditions, and project services.

For manufacturers planning a new line, defining these requirements before requesting quotations makes it easier to compare different configurations and understand why their prices differ.

FAQ

What has the biggest impact on spray painting line cost?
Workpiece dimensions, production capacity, pretreatment, automation level, booth and ventilation requirements, drying or curing equipment, and the overall project scope are major factors.

How can I get a more accurate spray painting line quotation?
Provide workpiece drawings or photos, material, dimensions, weight, daily output, coating type, production process, color requirements, and available factory dimensions. More complete information allows the supplier to develop a more suitable configuration.
