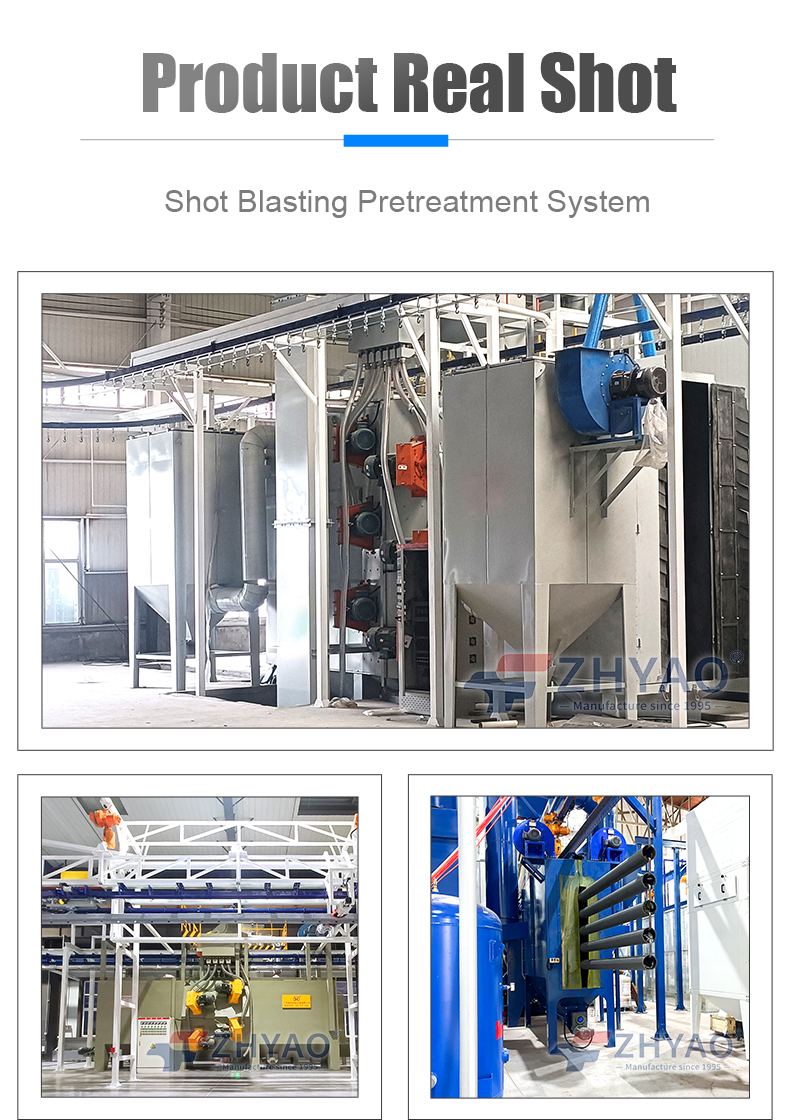

Product Overview

The Shot Blasting Pretreatment System is a mechanical surface cleaning process widely used in powder coating production lines. It removes rust, oxide scale, welding slag, and surface contaminants from metal workpieces through high-speed abrasive blasting.

Unlike chemical pretreatment methods, shot blasting relies on mechanical impact, making it highly effective for steel structures, castings, heavy-duty parts, and large metal components.

The process significantly improves surface roughness, which enhances coating adhesion and ensures long-term corrosion resistance after powder coating.

Common Problems Solved by Shot Blasting Pretreatment System

In industrial surface treatment, untreated or poorly cleaned metal surfaces often lead to coating failures. The shot blasting system effectively solves:

Heavy rust and oxide scale on steel surfaces

Welding slag and burrs after fabrication

Poor coating adhesion due to smooth surface

Uneven coating performance on large steel structures

Reduced corrosion resistance of finished products

By creating a uniform surface profile (anchor pattern), shot blasting significantly improves coating bonding strength.

System Structure & Working Principle

The shot blasting system uses high-speed rotating blast wheels to accelerate steel shots or abrasives toward the workpiece surface. The impact removes contaminants and roughens the surface.

Typical System Components:

Blast chamber

Blast wheels (turbines)

Abrasive circulation system

Dust collection system

Elevator system

Separator system

PLC control system

Working Process:

Loading → Sealing → Shot Blasting → Abrasive Recovery → Dust Removal → Unloading

The system can be configured as hook type, roller conveyor type, or pass-through type depending on production requirements.

Technical Parameters

Abrasive type: steel shot / steel grit / mixed media

Cleaning grade: Sa 2.0 – Sa 2.5 (ISO 8501-1 standard)

Processing method: hook type / roller conveyor / continuous pass-through

Blast wheel power: 7.5 kW – 30 kW per wheel

Dust emission control: cartridge filter system

Control system: PLC automatic control

Workpiece size: customized based on project requirements

Key Features

High-efficiency rust and scale removal

Creates uniform surface roughness for better coating adhesion

Suitable for heavy-duty and large metal parts

Fully automatic abrasive recycling system

Stable and controllable blasting performance

Integrated dust collection system for clean operation

Customizable machine configuration based on production needs

Technical Advantages

Shot blasting is a purely mechanical pretreatment method, making it ideal for industries requiring strong adhesion and durable coating performance.

Key advantages include:

No chemical waste discharge

Strong surface activation effect

High productivity for large-scale production

Consistent surface roughness control

Suitable for continuous industrial operation

It is especially effective for steel structures where chemical pretreatment may not provide sufficient surface profile.

Typical Applications

Steel structure fabrication

Construction machinery

Automotive frames and chassis parts

Shipbuilding components

Foundry castings

Railway and transportation parts

 FAQ

Q1: What is shot blasting pretreatment used for?

It is used to remove rust, scale, and surface contaminants before powder coating or painting.

Q2: What surface quality can be achieved?

Typically Sa 2.0 to Sa 2.5 cleaning grade according to ISO standards.

Q3: Is shot blasting better than chemical pretreatment?

For heavy steel parts, shot blasting provides better mechanical surface preparation, while chemical methods are more suitable for precision or complex hollow structures.

Conclusion

The Shot Blasting Pretreatment System is a highly efficient mechanical surface preparation solution for powder coating production lines. It ensures clean, roughened, and uniform metal surfaces that significantly improve coating adhesion and durability.

Proper system design, abrasive selection, and dust control are key factors in achieving stable production performance.

If you are planning a powder coating production line or upgrading your surface pretreatment system, we can provide engineering-based layout design, shot blasting system configuration, and full integration solutions based on your production requirements and factory conditions.
