Product Overview

The Paint Spraying Line is an industrial coating system designed for applying liquid paint onto metal or properly prepared non-metal surfaces. The line integrates pretreatment, spray painting, drying, curing, conveying, and exhaust treatment into a coordinated production process.

It is suitable for both continuous and batch production, helping manufacturers improve coating consistency, production efficiency, and environmental control.

The system is widely used in industries such as automotive parts, metal furniture, home appliances, construction materials, agricultural equipment, and industrial machinery.

Production Challenges Solved by Paint Spraying Line

Traditional manual painting workshops often face problems such as unstable coating quality, excessive paint waste, and low production efficiency.

The paint spraying line helps solve:

Uneven paint thickness and inconsistent surface appearance

Paint waste caused by overspray and poor atomization

Dust contamination affecting coating quality

Slow drying and curing efficiency

High labor intensity in manual spraying operations

Difficulty meeting environmental and VOC emission requirements

By integrating controlled spraying and drying systems, the line improves production stability and coating performance.

System Structure & Working Principle

The paint spraying line consists of several integrated process sections operating continuously:

Typical Process Flow:

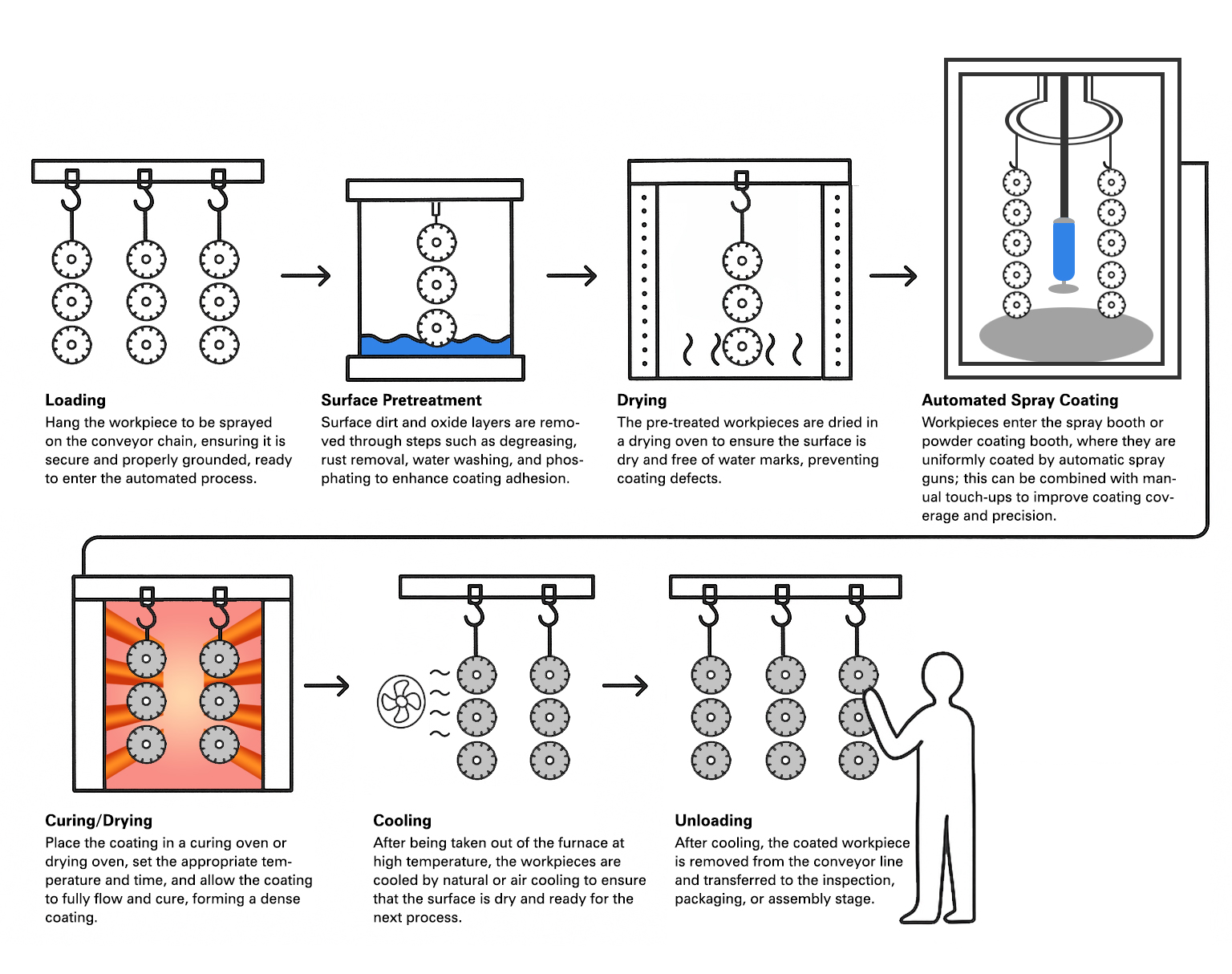

Loading → Pretreatment → Drying → Paint Spraying → Flash-Off → Drying / Curing → Cooling → Inspection → Unloading

Main System Components:

Pretreatment system (cleaning, degreasing, surface preparation)

Spray booth system (manual or automatic spray painting)

Paint supply and circulation system

Flash-off area for solvent evaporation stabilization

Drying or curing oven

Conveyor system (overhead or floor-type)

Air filtration and exhaust treatment system

PLC intelligent control system

The paint is atomized through spray guns and evenly deposited onto the workpiece surface. After solvent evaporation and thermal curing, a stable coating film is formed.

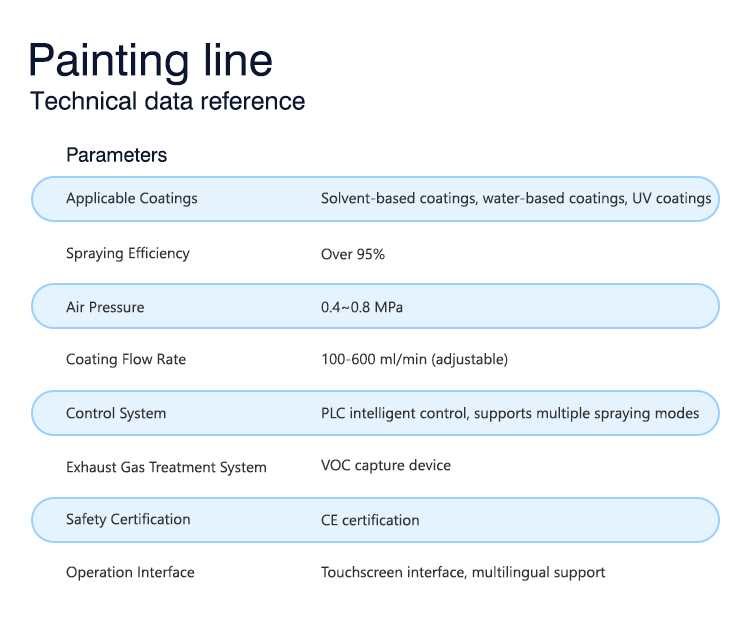

 Technical Parameters

Engineering Advantages

The paint spraying line is designed for long-term industrial production stability and coating quality control.

Key engineering advantages include:

Controlled paint atomization improves coating uniformity

Stable airflow inside spray booth reduces paint defects

Flash-off section helps prevent bubbling and sagging

Drying oven temperature control improves curing consistency

Modular structure supports future production expansion

Integrated exhaust treatment improves environmental compliance

The system is suitable for manufacturers requiring stable decorative and protective coatings.

 Service Support

Customized production line design

Factory layout planning support

Installation and commissioning service

Operator training and maintenance guidance

Process optimization support

Spare parts and technical service support

FAQ

Q1: What is a paint spraying line used for?

It is used for industrial spray painting and surface finishing of metal or prepared non-metal products.

Q2: Can water-based paint be used?

Yes, the system supports both solvent-based and water-based coating systems.

Q3: Is automatic spraying available?

Yes, the line can integrate automatic reciprocators or robotic spraying systems.

Conclusion

The Paint Spraying Line provides an efficient and stable solution for industrial liquid painting applications. It improves coating consistency, production efficiency, and environmental control while supporting flexible production requirements.

It is suitable for manufacturers seeking reliable decorative and protective surface finishing systems.

If you provide your workpiece dimensions, coating requirements, and production capacity, we can design a customized paint spraying line solution including layout planning, spray booth configuration, and drying system selection.

【Talk to Our Team】
