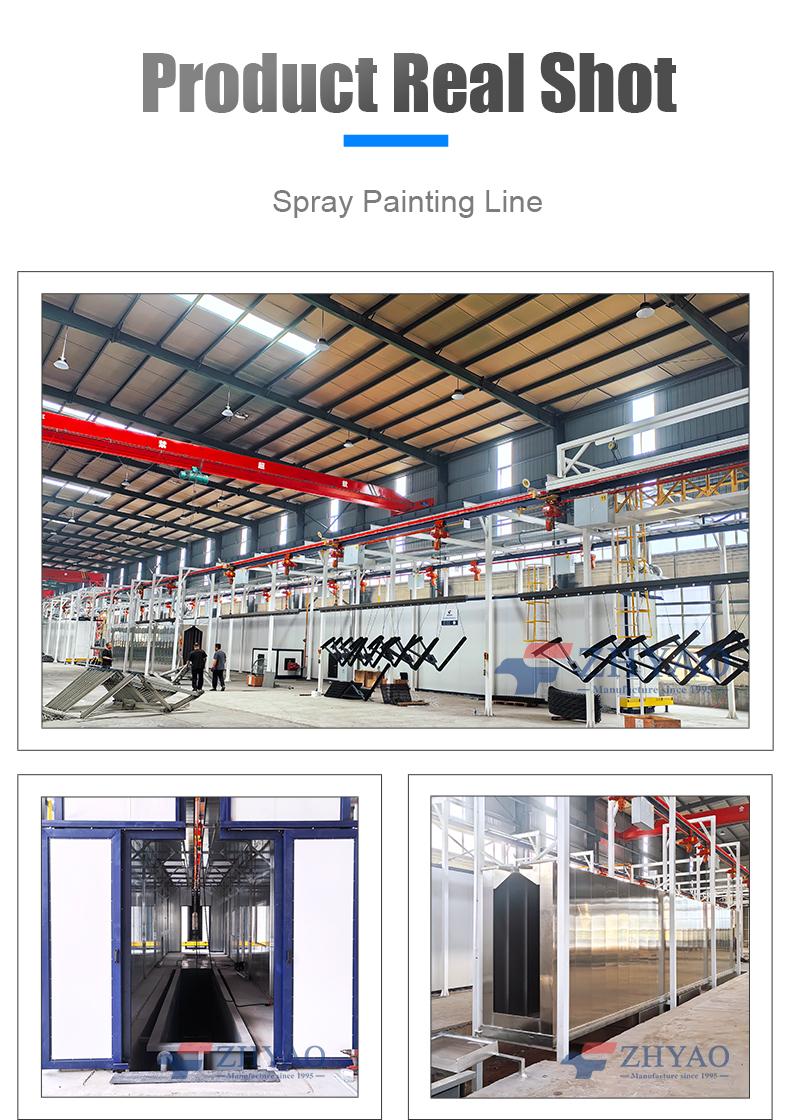

Product Overview

The Spray Painting Line is an integrated industrial coating system designed for applying liquid coatings onto metal and pre-treated non-metal products. It combines surface pretreatment, spray application, drying, curing, conveying, and exhaust treatment into a continuous production workflow.

Unlike general painting systems, a spray painting line focuses on controlled atomization and uniform film formation, making it suitable for medium to high-volume production environments requiring stable surface quality.

It is widely used in industrial manufacturing sectors such as metal fabrication, equipment production, transportation components, and structural parts.

Production Challenges Solved

In traditional spray painting workshops, manufacturers often face issues related to coating consistency and production efficiency.

The spray painting line helps solve:

Uneven spray distribution causing inconsistent film thickness

High overspray loss leading to material waste

Dust contamination affecting surface quality

Low efficiency in manual spray operations

Long drying cycles impacting production output

Difficulties in maintaining stable batch quality

By standardizing spraying parameters and production flow, the system improves coating stability and repeatability.

System Structure & Working Principle

The spray painting line operates as a coordinated multi-stage system:

Process Flow:

Loading → Pretreatment → Surface Drying → Spray Painting → Flash-Off → Drying / Curing → Cooling → Inspection → Unloading

Core System Modules:

Pretreatment system (degreasing, cleaning, surface preparation)

Spray booth system (manual or automatic spray application)

Paint supply system (pressure control, filtration, and circulation)

Flash-off zone (controlled solvent evaporation)

Drying / curing oven (thermal treatment system)

Conveyor system (overhead or floor-type transport)

Exhaust air treatment system

Central PLC control system

The system ensures stable atomization, controlled film formation, and consistent drying performance.

Technical Parameters

Coating type: liquid spray coatings (solvent-based / water-based)

Drying temperature: 60–180°C adjustable

Flash-off condition: ambient to controlled heated zone

Spray method: manual / automatic reciprocator / robotic spraying optional

Conveyor speed: adjustable frequency control

Control system: PLC + HMI interface

Air system: balanced supply and exhaust design

Environmental control: VOC treatment optional (carbon filter / wet scrubber)

Key Features

Stable spray atomization for uniform coating results

Suitable for medium to large-scale production

Flexible system configuration for different product types

Supports continuous and batch operation modes

Reduced overspray and improved paint utilization

Modular design for easy expansion and upgrading

Compatible with automated and robotic spraying systems

Engineering Advantages

The spray painting line is engineered for precision coating control and stable production performance.

Key engineering advantages include:

Optimized spray booth airflow improves coating uniformity

Controlled atomization system reduces surface defects

Stable paint supply system ensures consistent output

Flash-off zone improves film quality and reduces defects

Energy-efficient drying system reduces operating cost

Modular layout design supports factory customization

It is suitable for manufacturers requiring stable decorative and protective coating performance.

Core System Sections

Pretreatment Section

Removes oil, dust, and surface contaminants before coating.

Spray Booth System

Provides a controlled environment for uniform spray application.

Paint Supply System

Ensures stable pressure, filtration, and paint circulation.

Flash-Off Zone

Allows controlled solvent evaporation before curing.

Drying / Curing Oven

Ensures proper film formation and coating hardening.

Conveyor System

Automatically transports workpieces through each process stage.

Exhaust Treatment System

Removes paint mist and helps meet environmental standards.

Typical Applications

Industrial metal components

Automotive parts and accessories

Machinery equipment housings

Steel and aluminum structures

Electrical enclosures

Agricultural equipment parts

General industrial fabrication products

Service Support

Customized spray painting line design

Factory layout and process planning

Installation and commissioning support

Operator training and maintenance guidance

Coating process optimization support

Spare parts and technical support service

FAQ

Q1: What is a spray painting line used for?

It is used for industrial spray coating of metal and prepared non-metal surfaces.

Q2: What types of paint can be used?

Solvent-based and water-based industrial coatings are both supported.

Q3: Can it be automated?

Yes, it can integrate automatic reciprocators or robotic spray systems.

Conclusion

The Spray Painting Line provides a stable and efficient solution for industrial liquid coating applications. It improves coating uniformity, reduces material waste, and ensures consistent production performance across different manufacturing environments.

It is suitable for manufacturers requiring reliable and scalable spray coating systems.
