Powder Coating Solutions for Aluminum Profiles

Powder Coating Solutions for Aluminum Profiles

Aluminum profiles are widely used in construction, transportation, and industrial systems due to their lightweight structure, corrosion resistance, and easy machinability. However, achieving a stable and high-quality powder coating finish on aluminum profiles requires more than basic spraying and curing.

In practical production, issues such as poor adhesion, uneven film thickness, color variation, and surface defects are often linked to process instability rather than material quality alone. A reliable aluminum profile powder coating solution must consider the entire process chain—from pretreatment to curing.

1. Surface Pretreatment Determines Final Coating Stability

For aluminum profiles, surface pretreatment is the most critical stage affecting coating performance. Unlike steel, aluminum naturally forms an oxide layer that can reduce coating adhesion if not properly treated.

Key factors affecting pretreatment quality:

Incomplete degreasing of extrusion oil

Unstable chemical conversion coating

Poor rinsing quality leading to residue contamination

Inconsistent surface activation

Optimization approach:

A stable pretreatment system should ensure:

Thorough removal of extrusion lubricants

Controlled conversion coating thickness

Multi-stage rinsing with stable water quality

Proper drying before powder application

A weak pretreatment process often leads to downstream coating failures, even if spraying and curing parameters are correctly controlled.

2. Electrostatic Spraying Stability for Aluminum Profiles

Aluminum profiles often have complex geometries, including grooves, corners, and hollow sections. These structures can create electrostatic shielding effects, leading to uneven coating distribution.

Common issues:

Faraday cage effect in deep or narrow areas

Uneven powder attraction on sharp edges

Overspray on flat surfaces

Inconsistent film thickness along long profiles

Optimization strategies:

Use multi-angle spray gun positioning

Adjust electrostatic voltage according to profile shape

Reduce excessive powder output to avoid rebound loss

Improve grounding stability of hanging systems

In aluminum profile coating, spray control consistency is more important than maximizing powder output.

3. Film Thickness Control and Appearance Consistency

Aluminum profiles are often used in architectural applications, where surface appearance consistency is critical. Uneven film thickness can result in visible color differences and gloss variation.

Main causes:

Irregular spray overlap along long workpieces

Fluctuating line speed

Unstable powder delivery system

Improper operator adjustment during continuous production

Solutions:

Standardize spray path and gun movement logic

Synchronize conveyor speed with powder output

Maintain stable powder fluidization and feeding pressure

Reduce manual parameter adjustments during production runs

Consistency in process control is more effective than frequent correction during production.

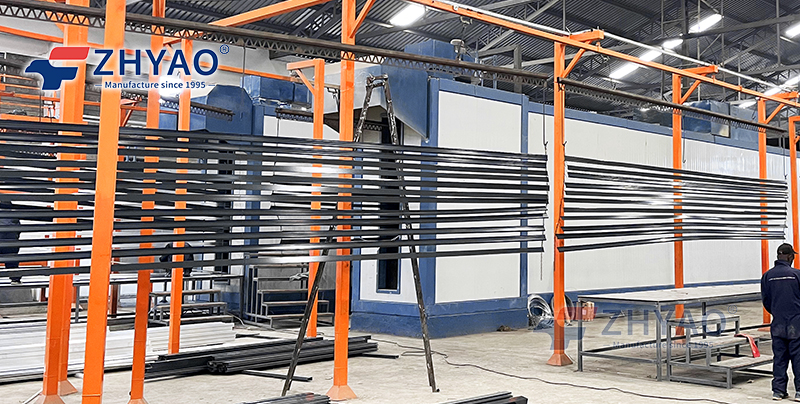

4. Curing Process Directly Affects Mechanical and Weather Resistance

Aluminum profile coatings are often exposed to outdoor environments, requiring strong weather resistance and UV stability. The curing process determines crosslinking density and final coating performance.

Common curing problems:

Under-curing leading to weak adhesion and low hardness

Over-curing causing color shift or brittleness

Uneven temperature distribution in long curing ovens

Optimization approach:

Ensure uniform air circulation inside curing oven

Match curing curve with powder specification requirements

Avoid temperature fluctuation during continuous operation

Verify actual workpiece temperature rather than only oven setpoint

In aluminum profile lines, long workpieces make temperature uniformity a key control point.

5. Powder Recovery and Color Change Efficiency

Aluminum profile production often involves multiple colors, especially in architectural applications. This makes powder recovery and color change efficiency an important cost factor.

Key challenges:

Powder contamination during color switching

High powder loss during cleaning cycles

Residual powder accumulation in ducts and booths

Optimization strategies:

Design dedicated fast color-change booths for production flexibility

Minimize dead zones in powder transport system

Control recycled powder ratio strictly by color system

Implement structured cleaning procedures between color shifts

Efficient color change management significantly reduces hidden powder consumption.

6. System Integration Is the Core of Stable Aluminum Coating

Aluminum profile coating quality cannot be guaranteed by a single machine or parameter. It depends on the stability of the entire integrated system.

A reliable aluminum powder coating solution typically integrates:

Stable pretreatment line

Controlled electrostatic spraying system

Balanced powder recovery system

Uniform curing oven design

Consistent conveyor and hanging system

When one subsystem becomes unstable, defects often appear even if other stages are well controlled.

Conclusion

Powder coating for aluminum profiles requires a system-based approach rather than isolated adjustments. The most critical factors include pretreatment quality, spraying stability, curing uniformity, and powder management efficiency.

In practical production environments, improving system coordination usually delivers better results than increasing equipment complexity or adjusting individual parameters.

A well-designed aluminum profile powder coating solution ensures consistent appearance, strong adhesion, and stable long-term performance across different production conditions.
