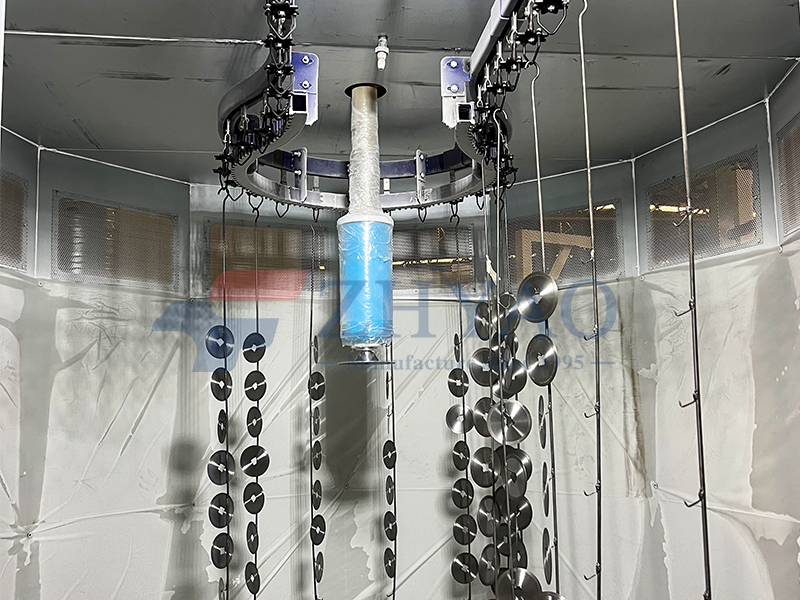

Professional Automated Spray Painting System by ZHYAO

ZHYAO Automatic Spray Painting Line is an advanced turnkey painting solution designed to automate the coating process for metal and non‑metal parts. By combining intelligent control, precision spray systems, and optimized process flow, this automatic painting line replaces manual labor with stable, consistent, and high‑quality surface coatings. Ideal for modern factories seeking high production efficiency, uniform paint finish, and cost-effective operations.

Key Features & Benefits

✅ Fully Automated Production

Integrated automatic conveying, spraying, and curing systems ensure seamless workflow from loading to unloading, minimizing manual intervention and maximizing throughput.

✅ High‑Quality Coating Performance

Precisely controlled spray guns and optimized paint application ensure uniform coating thickness and smooth surface finish across complex part geometries.

✅ Intelligent Control System

PLC control with touch-screen interface allows real-time monitoring and adjustment of spraying parameters, drying temperature, and production speed for consistent output.

✅ Quick Color Change & Flexible Configuration

Optional quick color change system reduces downtimes during model or paint changes, increasing overall utilization.

✅ Space‑Saving and Energy‑Efficient Design

Compact layout and efficient drying/curing ovens save floor space and reduce energy consumption, lowering operating costs.

✅ Environmental Protection

Advanced paint mist filtration and VOC control systems minimize emissions, helping factories comply with environmental standards.

System Composition

ZHYAO Automatic Spray Painting Line can be configured according to customer needs and typically includes:

Pretreatment Area – Surface cleaning, degreasing, sanding, and masking prepare parts for optimal paint adhesion.

Automatic Conveying System – Conveyor chains or overhead systems ensure stable movement through each process station.

Paint Spray Booth(s) – Controlled environment spray area that contains overspray and maintains consistent airflow for quality finishes.

Spray Application Equipment – High‑precision spray guns (electrostatic, air spray, or robotic arms) deliver uniform coatings.

Paint Supply & Recirculation System – Ensures stable paint delivery while reducing waste.

Drying / Curing Ovens – Efficient tunnel ovens or infrared/UV ovens accelerate paint curing for durability.

Quality Inspection Stations – Optional check points for thickness, color consistency, and surface performance.

Environmental Controls – Filtration and exhaust systems ensure clean, compliant operation.

Customization & Flexibility

The line is fully customizable based on:

Workpiece size, shape, and weight

Production capacity and takt time

Type of coating (water‑based, solvent‑based, UV, 2K, etc.)

Industry-specific requirements

This flexibility makes the system suitable for both large batches and multi-variety small lots.

Typical Applications

ZHYAO Automatic Spray Painting Line is widely used in industries such as:

Automotive & Auto Parts (bumpers, engine covers)

Home Appliances (washing machines, refrigerators)

Furniture & Cabinets

Industrial Machinery & Metal Components

Electrical & Electronics Housings

Agricultural & Construction Equipment

Why Choose ZHYAO?

Turnkey supply with professional design & installation

Long service life and excellent after-sales support

Tailored solutions to match your production needs

Proven performance and reliability in diverse industries

For more technical details, customization options, or a quotation, contact ZHYAO today to enhance your coating process and production efficiency.
