Powder Coating Line Layout Guide for Efficient Production

1. Engineering View of Powder Coating Line Layout

In engineering practice, powder coating line layout is not simply about arranging equipment in sequence. It is a system-level design that determines material flow stability, production takt time, energy efficiency, and long-term maintainability.

In many factory projects, inefficiencies are not caused by individual machines, but by layout-related issues such as excessive conveyor travel distance, poor buffering design, or mismatched process timing between pretreatment and curing.

2. Process Flow Defines Layout Logic

A correct layout always follows process logic rather than physical installation convenience.Typical powder coating process flow includes:

Loading and hanging

Pretreatment system

Drying oven

Powder spraying booth

Curing oven

Cooling section

Unloading

From an engineering standpoint, the key principle is flow continuity. Any interruption or reverse movement increases handling time and reduces production stability.

3. Conveyor System as the Core Layout Element

The conveyor system largely determines the overall structure of a powder coating line.

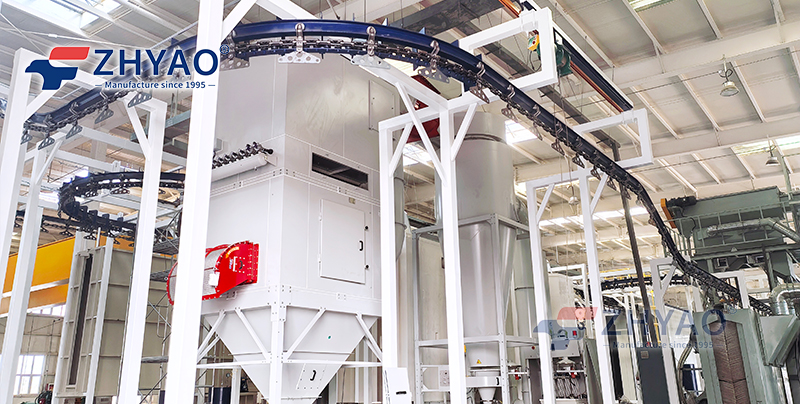

Overhead Conveyor System

Suitable for continuous production lines, separating floor operations from material transport and improving space utilization.

Power and Free Conveyor System

Used in flexible production environments where buffering, accumulation, and multi-speed operation are required.

Floor Rail Conveyor System

Applied for heavy or large workpieces where stability is prioritized.

Selection should be based on product weight, production takt time, and required flexibility.

4. Space Planning and Maintenance Accessibility

From an engineering design perspective, layout efficiency is not only about compactness but also about maintainability and safety clearance.

Key considerations include:

Maintenance access around ovens and booths

Separation of hot and cold zones

Operator safety pathways

Ventilation and exhaust routing

Reserved space for future expansion

Insufficient maintenance space is one of the most common long-term operational issues in coating plants.

5. Energy Efficiency is Determined by Layout Design

In real engineering projects, energy consumption is strongly influenced by system layout.

For example:

Short conveyor paths reduce motor load

Optimized oven placement reduces heat loss

Grouping thermal processes improves energy utilization

Balanced line speed reduces idle operation

Energy optimization should be considered during the design stage, not after installation.

6. Planning for Future Expansion

A powder coating line should not only meet current production requirements but also support future capacity expansion.

Typical engineering considerations include:

Conveyor extension capability

Additional spray booths or robots

Modular pretreatment expansion

Control system upgrades

Reserved automation integration space

A scalable layout reduces future modification cost and downtime.

Conclusion

From an engineering perspective, powder coating line layout is a system integration task involving process flow, conveyor design, space planning, energy efficiency, and scalability.

A well-designed layout improves not only production efficiency but also operational stability and long-term maintenance performance.
