The ZHYAO Vertical Powder Coating Line is a fully automated coating system designed for vertical handling of metal workpieces. It integrates pretreatment, powder spraying, powder recovery, curing, and conveyor transportation into one continuous production process.

The vertical layout is ideal for long, tall, or irregularly shaped components, providing stable conveying, consistent coating quality, and efficient production for a wide range of industrial applications.

Key Benefits

✔ Continuous automated production

✔ Stable coating quality and uniform powder application

✔ Compact vertical layout for efficient space utilization

✔ Customized solutions based on workpieces and production requirements

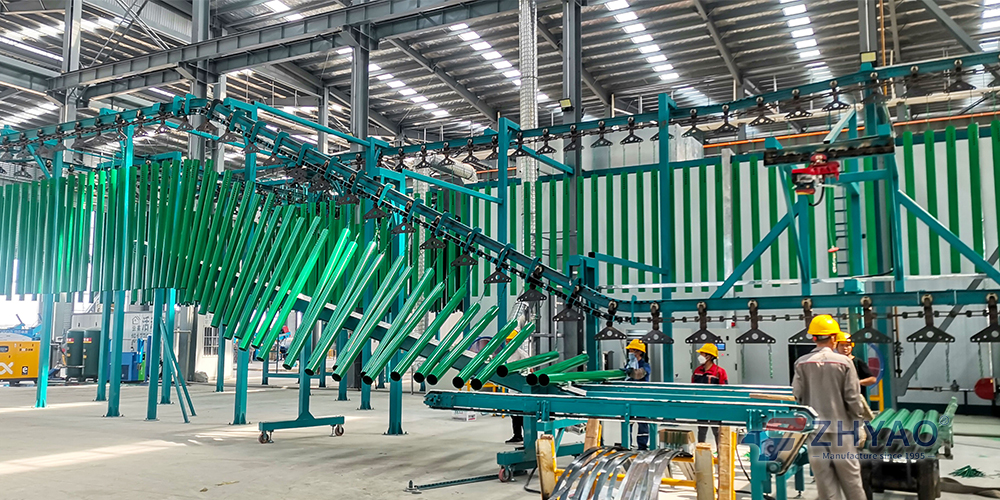

                                                                                      （Guodian Group Vertical Powder Coating Line Project in Guangxi, China）

Product Overview

The Vertical Powder Coating Line is designed for manufacturers requiring continuous, automated powder coating production.

Compared with conventional horizontal layouts, the vertical conveyor system allows workpieces to remain suspended throughout the coating process, reducing handling while improving production efficiency and coating consistency.

Each production line is engineered according to workpiece dimensions, production capacity, factory layout, and coating process requirements.

Key Features

Efficient Vertical Layout

The vertical conveying system optimizes production flow while reducing floor space requirements.

Suitable for long, tall, or irregular-shaped workpieces.

Consistent Coating Quality

Automatic powder spray guns provide stable and uniform powder application.

The powder recovery system helps improve powder utilization and reduce material waste.

Continuous Production

The conveyor system connects each production stage for smooth and efficient operation.

Suitable for medium and high-volume manufacturing.

Flexible System Configuration

The production line can be configured according to:

Workpiece dimensions

Production capacity

Powder coating requirements

Factory layout

Intelligent Control System

PLC control allows centralized management of conveyor speed, spray parameters, and curing temperature for stable production.

Working Process

Pretreatment→Drying→Automatic Powder Spraying→Powder Recovery→Curing→Cooling→Finished Product

Typical Applications

The Vertical Powder Coating Line is widely used for:

Electrical Cabinets & Control Panels

Metal Enclosures

Industrial Machinery Components

Steel Frames

Storage Rack Systems

Aluminum Profiles

Agricultural Equipment Parts

Metal Furniture Components

System Components

A typical vertical powder coating line includes:

Pretreatment System

Drying Oven

Vertical Conveyor System

Automatic Powder Spray Booth

Powder Recovery System

Curing Oven

Cooling Section

PLC Control System

Environmental Protection System

Typical Projects

Customized vertical powder coating solutions for manufacturers across different industries.

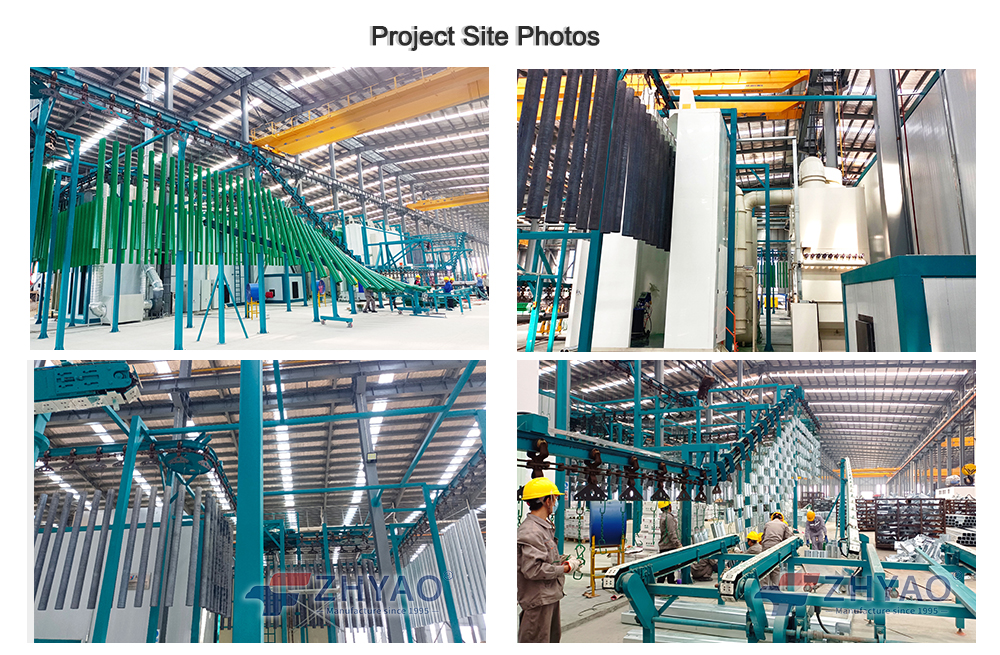

                                                                                            （Powder Coating Line Project Installation Site）

Get Your Custom Solution & Quote

Every production line is designed according to the customer's products and manufacturing requirements.

To recommend a suitable vertical powder coating solution, please provide:

Workpiece dimensions

Maximum workpiece weight

Production capacity

Factory layout

Powder coating requirements

Our engineering team will evaluate your application and provide a customized production line solution and quotation.

FAQ

What products are suitable for a vertical powder coating line?

It is suitable for long, tall, or suspended metal workpieces such as electrical cabinets, metal frames, enclosures, aluminum profiles, and industrial components.

What is the difference between a vertical and a horizontal powder coating line?

A vertical powder coating line uses overhead suspension to transport workpieces throughout the production process, making it suitable for taller products and continuous production. A horizontal line is generally used for products that require horizontal conveying or different handling methods.

Can the production line be customized?

Yes. The conveyor system, spray booth, curing oven, and other equipment can be configured according to workpiece dimensions, production capacity, and factory layout.
