Powder Coating Line for Medical Bed Manufacturing

ZHYAOdelivered a customized powder coating line for a medical bed manufacturing company. The system is designed for surface finishing of steel frames used in hospital beds and nursing beds, which are commonly applied in hospitals, elderly care facilities, and rehabilitation environments.

Medical bed components are typically made of welded tubular steel and sheet metal structures. The combination of different geometries creates challenges in achieving consistent coating performance across all surfaces. For this reason, the production line must ensure stable coating distribution, reliable adhesion, and repeatable finishing quality across different product configurations.

Engineering Requirements

Consistent coating thickness on tubular and flat surfaces

Flexible production for multiple bed frame designs

Stable surface pretreatment process for improved adhesion

Controlled curing temperature profile for uniform finish

Continuous production with minimal interruption

System Design Overview

Material Handling System:

A hanging conveyor system is implemented to transport medical bed frames through each processing stage. The system supports variable product sizes and ensures stable movement without deformation during production.

Surface Pretreatment System:

The pretreatment section includes degreasing, rinsing, and surface activation stages. This ensures removal of contaminants and improves surface energy for better coating adhesion performance.

Powder Coating System:

An automated multi-axis spraying system is configured to handle complex tubular geometries. Spray positioning is optimized to reduce shadow areas and improve coating coverage consistency.

Curing Oven System:

A hot air circulation curing oven ensures uniform heat distribution throughout the chamber. This supports stable polymerization of powder coatings and improves overall surface finish consistency.

Cooling & Transfer System:

After curing, parts pass through a controlled cooling zone integrated with the conveyor system, ensuring safe handling and smooth transition to downstream assembly processes.

System Advantages

Engineered for complex medical furniture geometries

Improved coating consistency across all surfaces

Fully integrated pretreatment and coating process

Stable continuous operation for batch production

Optimized curing performance for uniform surface finish

Modular system design for future expansion

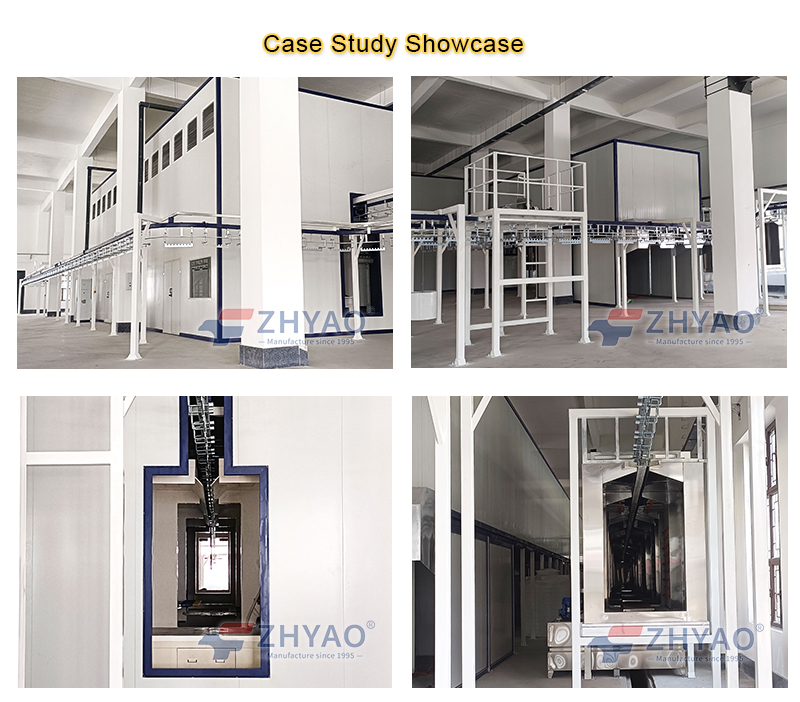

This medical bed powder coating line has been successfully installed and is operating under stable production conditions. The system supports continuous batch manufacturing with consistent coating quality across multiple product models.

If required, the system can be further customized according to production capacity, factory layout, and product specifications.
